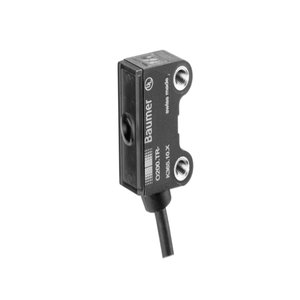

Baumer O200.TL-GZZY.72CV/FIN2-H006 Photoelectric Sensor
The Baumer O200.TL-GZZY.72CV/FIN2-H006 Photoelectric Sensor offers a Rectangular design, 6 m nominal range, Emitter, Push-pull output, and Cable 4 pin, 2 m connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | O200.TL-GZZY.72CV/FIN2-H006 |
Baumer O200.TL-GZZY.72CV/FIN2-H006 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Emitter / receiver | Emitter |
| Actual range Sb | 5 m |
| Nominal range Sn | 6 m |
| Power on indication | LED green |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 20 mA (@ 10 VDC) |
| Current consumption typ. | 10 mA (@ 24 VDC) |
| Output function | By IO-Link only |
| Output circuit | Push-pull |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 8 mm |
| Height / length | 25.1 mm |
| Depth | 15.8 mm |
| Design | Rectangular |
| Mechanical mounting | Threaded sleeves M3 (stainless steel) |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Cable characteristics | PVC / PVC 4 x 0.08 mmΒ² |
| Operating temperature | -20 β¦ +50 Β°C |
| Protection class | IP 67 |
| Light source | Pulsed red laser diode |
| Wave length | 680 nm |
Call us for Baumer Push-Pull Output Sensor O200.TL-GZZY.72CV/FIN2-H006 part no: 11230776 at the best rates. Technical Attributes of O200.TL-GZZY.72CV/FIN2-H006, 11230776 are Through beam sensor Model Type designed for precise object detection with a nominal range of 6 m. This sensor operates on a voltage supply range of 10 β¦ 30 VDC, with a maximum current consumption of 20 mA (@ 10 VDC) and a typical consumption of 10 mA (@ 24 VDC). The compact Rectangular design features dimensions of 8 mm in width, 25.1 mm in height, and 15.8 mm in depth, ensuring easy installation in various industrial environments. The housing is made from durable Plastic (ASA, PMMA) offering robustness for demanding applications. The sensor connects via a Cable 4 pin, 2 m making it suitable for seamless integration into your system. With a Emitter. Unlock Exclusive Pricing with a Quote for your requirement of Baumer Push-Pull Output Sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
