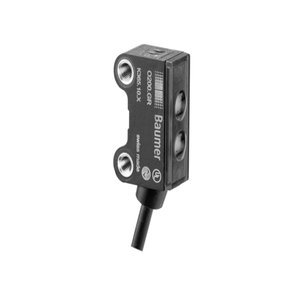

Baumer O200.GR-GD1E.72NV/H006_T007 Photoelectric Sensor
The Baumer O200.GR-GD1E.72NV/H006_T007 Photoelectric Sensor offers a Rectangular design, 15 β¦ 80 mm sensing distance, Push-pull output, and Flylead connector M8 4 pin, L=200 mm connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the Background Suppression type.
| Sensing distance Tw | 15 β¦ 80 mm |
| Sensing range Tb | 7 β¦ 80 mm |
| Output circuit | Push-pull |
| Connection types | Flylead connector M8 4 pin, L=200 mm |
Baumer O200.GR-GD1E.72NV/H006_T007 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Background suppression |
| Sensing distance Tw | 15 β¦ 80 mm |
| Sensing range Tb | 7 β¦ 80 mm |
| Smallest object recognizable typ. | 0.25 mm at 40 mm |
| Power on indication | LED green |
| Alignment / soiled lens indicator | Flashing output indicator |
| Output indicator | LED yellow |
| Sensing distance adjustment | External Teach-in / 1-Step Teach-in |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 1,5Β° |
| Light source | Pulsed red LED |
| Wave length | 644 nm |
| Response time / release time | < 1 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 20 mA (@ 30 VDC) |
| Current consumption typ. | 16 mA (@ 24 VDC) |
| Voltage drop Vd | <2 VDC |
| Output function | Dark operate |
| Output circuit | Push-pull |
| Output current | 50 mA |
| Short circuit protection | Yes |
| Width / diameter | 8 mm |
| Height / length | 25.1 mm |
| Depth | 14.1 mm |
| Design | Rectangular |
| Mechanical mounting | Threaded sleeves M3 (stainless steel) |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Flylead connector M8 4 pin, L=200 mm |
| Cable characteristics | PVC / PVC 4 x 0.08 mmΒ² |
| Protection class | IP 67 |
| Operating temperature | -25 β¦ +50 Β°C |
Send Your Inquiry for Baumer High-Performance Sensor For Industrial Use O200.GR-GD1E.72NV/H006_T007 part no: 11212634 with cost-effective solutions. Essential Technical Specs of O200.GR-GD1E.72NV/H006_T007, 11212634 are Background suppression Sensor, engineered for precise detection with a sensing distance (Tw) of 15 β¦ 80 mm. The sensor features External Teach-in / 1-Step Teach-in adjustment for flexible setup and utilizes an Pulsed red LED light source with a wavelength of 644 nm. It boasts a fast response time of less than < 1 ms, and operates within a voltage supply range of 10 β¦ 30 VDC, with a typical current consumption of 16 mA (@ 24 VDC). The output function supports Dark operate with a Push-pull output circuit and can handle an output current of up to 50 mA. Measuring 8 mm in width, 25.1 mm in height, and 14.1 mm in depth, this compact Rectangular sensor is connected via a Flylead connector M8 4 pin, L=200 mm. Capture the Best Deal with a Quote for your requirement of Baumer High-Performance Sensor For Industrial Use. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
