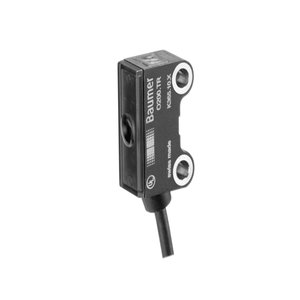

Baumer O200.ER-PV1Z.72CV Photoelectric Sensor
The Baumer O200.ER-PV1Z.72CV Photoelectric Sensor offers a Rectangular design, 6 m nominal range, Receiver, PNP complementary output, and Cable 4 pin, 2 m connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | O200.ER-PV1Z.72CV |
Baumer O200.ER-PV1Z.72CV Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Emitter / receiver | Receiver |
| Actual range Sb | 5 m |
| Nominal range Sn | 6 m |
| Smallest object recognizable typ. | 5 mm (0,5 mm with aperture) |
| Alignment / soiled lens indicator | Flashing output indicator |
| Output indicator | LED yellow |
| Power on indication | LED green |
| Sensitivity adjustment | No |
| Suppression of reciprocal influence | Yes |
| Response time / release time | < 0.5 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 20 mA (@ 30 VDC) |
| Current consumption typ. | 16 mA (@ 24 VDC) |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP complementary |
| Output current | 50 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 8 mm |
| Height / length | 25.1 mm |
| Depth | 14.1 mm |
| Design | Rectangular |
| Mechanical mounting | Sleeve smooth (stainless steel) |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Cable characteristics | PVC / PVC 4 x 0.08 mmΒ² |
| Operating temperature | -25 β¦ +50 Β°C |
| Protection class | IP 67 |
Get A Quote for Baumer PNP Output Sensor With Cable O200.ER-PV1Z.72CV part no: 11212607 at the best price. Here are the brief Technical Specifications of O200.ER-PV1Z.72CV, 11212607 are Through beam sensor Model Type designed for precise object detection with a nominal range of 6 m. This sensor operates on a voltage supply range of 10 β¦ 30 VDC, with a maximum current consumption of 20 mA (@ 30 VDC) and a typical consumption of 16 mA (@ 24 VDC). The compact Rectangular design features dimensions of 8 mm in width, 25.1 mm in height, and 14.1 mm in depth, ensuring easy installation in various industrial environments. The housing is made from durable Plastic (ASA, PMMA) offering robustness for demanding applications. The sensor connects via a Cable 4 pin, 2 m making it suitable for seamless integration into your system. With a Receiver. It's Time to get a Quote for your requirement of Baumer PNP Output Sensor With Cable. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
