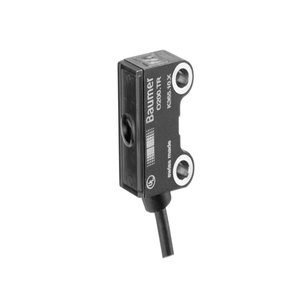

Baumer O200.EL-GW1J.72NV/FREC Photoelectric Sensor
The Baumer O200.EL-GW1J.72NV/FREC Photoelectric Sensor offers a Rectangular design, 6 m nominal range, Receiver, Push-pull output, and Flylead connector M8 4 pin, L=200 mm connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | O200.EL-GW1J.72NV/FREC |
Baumer O200.EL-GW1J.72NV/FREC Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Emitter / receiver | Receiver |
| Actual range Sb | 5 m |
| Nominal range Sn | 6 m |
| Smallest object recognizable typ. | 3 mm (0,5 mm with aperture) |
| Alignment / soiled lens indicator | Flashing output indicator |
| Output indicator | LED yellow |
| Power on indication | LED green |
| Sensitivity adjustment | Teach-in and IO-Link |
| Suppression of reciprocal influence | Yes |
| Response time / release time | < 0.1 ms, < 0.12 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 20 mA (@ 10 VDC) |
| Current consumption typ. | 10 mA (@ 24 VDC) |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | Push-pull |
| Output current | 50 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 8 mm |
| Height / length | 25.1 mm |
| Depth | 14.1 mm |
| Design | Rectangular |
| Mechanical mounting | Sleeve smooth (stainless steel) |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Flylead connector M8 4 pin, L=200 mm |
| Cable characteristics | PVC / PVC 4 x 0.08 mmΒ² |
| Operating temperature | -25 β¦ +50 Β°C |
| Protection class | IP 67 |
| Light source | Use with pulsed red laser diode |
Ask for the Pricing of Baumer Flylead Connector M8 4-pin Sensor O200.EL-GW1J.72NV/FREC part no: 11224792 at unbeatable prices. Detailed Specifications of O200.EL-GW1J.72NV/FREC, 11224792 feature Through beam sensor Model Type designed for precise object detection with a nominal range of 6 m. This sensor operates on a voltage supply range of 10 β¦ 30 VDC, with a maximum current consumption of 20 mA (@ 10 VDC) and a typical consumption of 10 mA (@ 24 VDC). The compact Rectangular design features dimensions of 8 mm in width, 25.1 mm in height, and 14.1 mm in depth, ensuring easy installation in various industrial environments. The housing is made from durable Plastic (ASA, PMMA) offering robustness for demanding applications. The sensor connects via a Flylead connector M8 4 pin, L=200 mm making it suitable for seamless integration into your system. With a Receiver. Now's the Time to Secure a Quote for your requirement of Baumer Flylead Connector M8 4-pin Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
