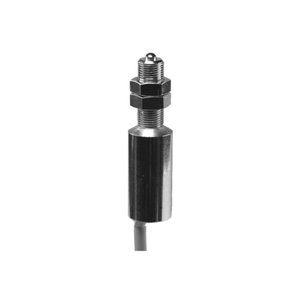

Baumer MY-COM M75P/S35: Precision Mechanical Switches
Technical Specifications of Baumer Precision Mechanical Switches MY-COM M75P/S35:
| Repeat accuracy | 0.001 mm |
| Connection types | Connector M8 |
| Operating temperature | -20 … +75 °C |
Baumer Precision Mechanical Switches MY-COM M75P/S35 Technical Specifications
| Specification | Value |
|---|---|
| Repeat accuracy | 0.001 mm |
| Activating force | 75 cN |
| Mech. pre-run / overrun | - / 1,5 mm approx. |
| Measurement type | Contact with medium |
| Direction of approach | Frontal |
| Output circuit | PNP make function (NO) |
| Activating pin | Zirconium oxide ZrO2 |
| Housing material | Brass nickel plated |
| Dimension | 8 mm |
| Design | Cylindrical threaded |
| Housing length | 37 mm |
| Connection types | Connector M8 |
| Operating temperature | -20 … +75 °C |
| Protection class | IP 67 |
| Voltage supply range +Vs | 5 … 36 VDC |
| Load current max. at 24 VDC | 50 mA |
| Load resistance min. | 480 Ohm |
