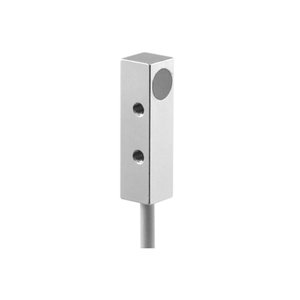

Baumer MFVM 08N3424/PL Proximity Sensor
The Baumer MFVM 08N3424/PL Proximity Sensor offers a Rectangular design, 60 mm sensing distance, NPN break function (NC) output, Flush mounting type, and Cable PUR, 2 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the MFFM Series.
| Nominal sensing distance Sn typ. | 60 mm |
| Switching frequency | 5 kHz |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Output current | 150 mA |
Baumer MFVM 08N3424/PL Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Magneto-resistive |
| Nominal sensing distance Sn typ. | 60 mm |
| Output indicator | LED red |
| Mounting type | Flush |
| Nominal operation point | 2.5 mT |
| Hysteresis | 2 β¦ 20 % of Sr |
| Repeat accuracy | 1 % of Sr |
| Switching frequency | 5 kHz |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 20 mA |
| Voltage drop Vd | <3 VDC |
| Output current | 150 mA |
| Output circuit | NPN break function (NC) |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes, Vs to GND |
| Design | Rectangular |
| Dimension | 8 mm |
| Housing material | Aluminum |
| Housing length | 30 mm |
| Connection types | Cable PUR, 2 m |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
| Version | Full metal |
