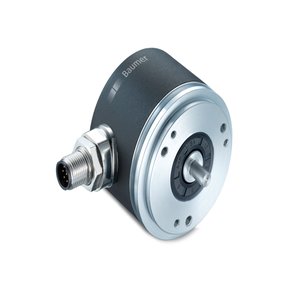

Baumer MAGRES EAM580R-SY - CANopen®/SAE J1939 Rotary Encoder
The Baumer MAGRES EAM580R-SY - CANopen®/SAE J1939 Rotary Encoder offers a Multiturn, Singleturn function, Magnetic sensing method, ø6 x 10 mm, solid shaft with flat shaft type, and Flange connector M12, 5-pin, Cable 2 m connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the EAL580-B Series.
| Brand | Sick |
| Product Type | Rotary Encoders |
| Model Number | MAGRES EAM580R-SY - CANopen®/SAE J1939 |
Baumer MAGRES EAM580R-SY - CANopen®/SAE J1939 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 10...30 VDC |
| Interface | CANopen®, SAE J1939 |
| Function | Multiturn, Singleturn |
| Absolute accuracy | ±0.15 ° (+20 ±15 °C), ±0.25 ° (-40...+85 °C) |
| Sensing method | Magnetic |
| Size (flange) | ø58 mm |
| Shaft type | ø6 x 10 mm, solid shaft with flat |
| Protection EN 60529 | IP 67 (with shaft seal) |
| Operating speed | ≤6000 rpm |
| Starting torque | ≤2.5 Ncm (+20 °C, IP 67) |
| Material | Housing: steel, powder-coated, Flange: aluminium, Shaft: stainless steel |
| Operating temperature | -40...+85 °C (see general information) |
| Relative humidity | 95 % |
| Resistance | EN 60068-2-6, Vibration 30 g, 10-2000 Hz, EN 60068-2-27, Shock 500 g, 1 ms |
| Weight approx. | 250 g |
| Connection | Flange connector M12, 5-pin, Cable 2 m |
Talk to Our Engineer for Baumer Multiturn, Singleturn Encoder MAGRES EAM580R-SY - CANopen®/SAE J1939 with exclusive offers. Core System Specifications of MAGRES EAM580R-SY - CANopen®/SAE J1939, are voltage supply of 10...30 VDC. These encoders feature the CANopen®, SAE J1939 interface, Multiturn, Singleturn functionality, and Magnetic sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm operations, ensuring reliable functionality in demanding environments. The Housing: steel, powder-coated, Flange: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flange connector M12, 5-pin, Cable 2 m, ensuring secure and efficient data transmission. Don't Miss Out on a Quote for your requirement of Baumer Multiturn, Singleturn Encoder. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
