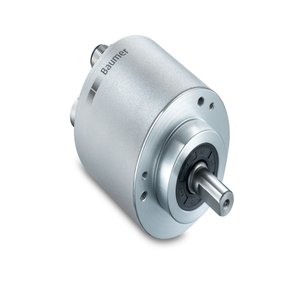

Baumer MAGRES EAM580-SC - EtherNet/IP Rotary Encoder
The Baumer MAGRES EAM580-SC - EtherNet/IP Rotary Encoder offers a Multiturn function, Magnetic sensing method, ø10 x 20 mm, solid shaft with flat shaft type, and Flange connector 3xM12 connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the EAL580-B Series.
| Brand | Sick |
| Product Type | Rotary Encoders |
| Model Number | MAGRES EAM580-SC - EtherNet/IP |
Baumer MAGRES EAM580-SC - EtherNet/IP Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 10...30 VDC |
| Interface | EtherNet/IP |
| Function | Multiturn |
| Absolute accuracy | ±0.15 ° (+20 ±15 °C), ±0.25 ° (-40...+85 °C) |
| Sensing method | Magnetic |
| Status indicator | 4x LED integrated in housing |
| Size (flange) | ø58 mm |
| Shaft type | ø10 x 20 mm, solid shaft with flat |
| Protection EN 60529 | IP 65 (without shaft seal), IP 67 (with shaft seal) |
| Operating speed | ≤6000 rpm |
| Starting torque | ≤2 Ncm (+20 °C, IP 65), ≤2.5 Ncm (+20 °C, IP 67) |
| Material | Housing: steel zinc-coated, Flange: aluminium, Hollow shaft: stainless steel |
| Operating temperature | -40...+85 °C (see general information) |
| Relative humidity | 95 % |
| Resistance | EN 60068-2-6, Vibration 30 g, 10-2000 Hz, EN 60068-2-27, Shock 250 g, 6 ms |
| Weight approx. | 360 g |
| Connection | Flange connector 3xM12 |
The MAGRES EAM580-SC - EtherNet/IP is a robust multiturn absolute encoder developed by Baumer for precise rotational feedback in automated systems using the EtherNet/IP communication protocol. With a supply voltage range of 10...30 VDC, this encoder ensures consistent performance across varying loads and system demands. It achieves ±0.15° accuracy under normal conditions and maintains up to ±0.25° even in extreme operating temperatures ranging from -40°C to +85°C. The unit features magnetic sensing technology, enabling contactless, wear-free measurement, and is equipped with 4 integrated LEDs for real-time status indication—supporting easy diagnostics during setup and maintenance.
Mechanically, the encoder is built around a solid ø10 x 20 mm shaft with flat, housed in a zinc-coated steel enclosure and secured with an aluminium flange. A stainless steel shaft ensures corrosion resistance, while protection ratings of IP65 or IP67 (with shaft seal) provide durability in dust, moisture, and washdown environments. It supports rotational speeds up to 6000 rpm with a starting torque of ≤2.5 Ncm, ensuring low resistance and smooth motor integration. The 3xM12 flange connectors guarantee stable, secure communication with your PLC or control system, making this encoder a trusted component in modern EtherNet/IP networks.
The Baumer MAGRES EAM580-SC - EtherNet/IP 16 bit ST Absolute Encoder is ideal for high-end automation where multiple-turn position feedback is essential—especially in packaging machines, conveyor lines, robotics, and smart production cells. Its compatibility with EtherNet/IP enables seamless integration into Rockwell, Allen-Bradley, or other EtherNet/IP-based systems, reducing installation complexity and improving response time. Its magnetic sensing and rugged housing allow it to perform reliably in harsh industrial conditions like automotive manufacturing, food processing, or metalworking plants. Maintenance engineers value its integrated status LEDs for quick error checks, while machine builders benefit from its compact form factor and high-speed operation. Whether used in servo drive positioning or synchronizing axis systems, this encoder delivers dependable, repeatable motion data that helps optimize performance and reduce downtime.
