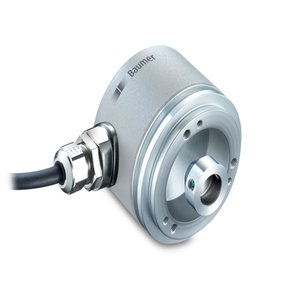

Baumer MAGRES EAM580-K - CANopen® Rotary Encoder
The Baumer MAGRES EAM580-K - CANopen® Rotary Encoder offers a Multiturn, Singleturn function, Magnetic sensing method, ø6 mm (magnet bore), ø8 mm (magnet bore), ø12 mm (magnet bore) shaft type, and Flange connector M12, 5-pin, Flange connector M12, 8-pin, Cable 2 m connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the EAL580-B Series.
| Brand | Sick |
| Product Type | Rotary Encoders |
| Model Number | MAGRES EAM580-K - CANopen® |
Baumer MAGRES EAM580-K - CANopen® Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 10...30 VDC |
| Interface | CANopen®, CANopen®-Lift, CANopen® + incremental |
| Function | Multiturn, Singleturn |
| Absolute accuracy | ±0.15 ° (+20 ±15 °C), ±0.25 ° (-40...+85 °C) (see info working distance) |
| Sensing method | Magnetic |
| Size (flange) | ø58 mm |
| Shaft type | ø6 mm (magnet bore), ø8 mm (magnet bore), ø12 mm (magnet bore) |
| Protection EN 60529 | IP 67 |
| Operating speed | ≤6000 rpm |
| Material | Housing: steel zinc-coated, Flange: aluminium |
| Operating temperature | -40...+85 °C (see general information) |
| Relative humidity | 95 % |
| Resistance | EN 60068-2-6, Vibration 30 g, 10-2000 Hz, EN 60068-2-27, Shock 500 g, 1 ms |
| Weight approx. | 250 g |
| Connection | Flange connector M12, 5-pin, Flange connector M12, 8-pin, Cable 2 m |
The MAGRES EAM580-B - PROFINET by Baumer combines high-precision magnetic sensing with a multiturn architecture to deliver reliable position feedback in harsh industrial environments. It offers a total resolution of up to 30 bits with absolute accuracy of ±0.15° at 20°C and ±0.25° over the full temperature range. Operating on a 10...30 VDC supply, this Baumer Magnetic Absolute Encoder supports robust PROFINET IO communication for fast and deterministic data transfer. The device features a blind hollow shaft (ø10...15 mm) and a compact ø58 mm flange, making it easy to install on motor shafts in space-constrained setups. Constructed from a steel zinc-coated housing, aluminium flange, and stainless steel shaft, the encoder is designed to operate under heavy loads, aggressive environments, and wide temperature variations from -40°C to +85°C.
With IP65/IP67 protection, this encoder resists dust, moisture, and oil ingress. It tolerates intense mechanical stress, with vibration resistance up to 30 g and shock loads of 250 g in accordance with EN 60068. Its maximum operating speed of 6000 rpm and low starting torque (≤2.5 Ncm) ensure smooth performance in dynamic applications. The encoder is equipped with 4 integrated LED indicators for power, communication, and diagnostics, and uses a flange connector 3xM12 for secure, efficient wiring. Built for reliability and precision, this model is trusted in critical systems where accurate multi-revolution tracking and PROFINET integration are essential.
The Baumer Magnetic Absolute Encoder MAGRES EAM580-B - PROFINET is widely used in automation environments where rugged performance and high-resolution position tracking are essential. Applications include robotic arms, automated storage/retrieval systems (AS/RS), gantry cranes, printing machinery, and rotary indexing tables. The magnetic sensing method provides immunity against contamination, dust, and shock, making it ideal for food processing lines, construction automation, and outdoor equipment. With direct integration into PROFINET-based PLCs, the encoder delivers fast diagnostics, accurate position values, and secure data handling, ensuring it meets the high demands of smart manufacturing and Industry 4.0 environments.
