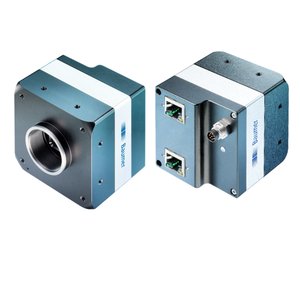

Baumer LXG-40C Industrial Camera
The Baumer LXG-40C Industrial Camera offers a 55 dB dynamic range, Global shutter, C-mount, and ams (CMOSIS) CMV4000 V3 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
| Brand | Baumer |
| Product Type | Industrial Camera |
| Model Number | LXG-40C |
Baumer LXG-40C Industrial Camera β Technical Specifications
| Specification | Value |
|---|---|
| Sensor | ams (CMOSIS) CMV4000 V3 |
| Mono/Color | Color |
| Sensor type | 1β³ CMOS |
| Shutter type | Global shutter |
| Resolution | 2048 Γ 2048 px |
| Pixel size | 5.5 Γ 5.5 Β΅m |
| Exposure time | 0.03 β¦ 1000 ms |
| Dark noise | 14.95 e- |
| Saturation capacity | 8870 e- |
| Dynamic range | 55 dB |
| Signal-to-noise ratio | 39.5 dB |
| Quantum efficiency | 38 % @ 465 nm, 40.2 % @ 536 nm, 40.9 % @ 631 nm |
| Image formats, interface frame rate max. | Full Frame, 2048 Γ 2048 px, max. 59 fps |
| Image formats, aquisition frame rate max. (Burst Mode) | Full Frame, 2048 Γ 2048 px, max. 180 fps |
| Pixel formats | BayerGB8, BayerGB10, BayerGB10 Packed |
| Analog controls | Gain (0 β¦ 12 dB), Offset (0 β¦ 63 LSB 10 Bit) |
| Color models | Raw Bayer |
| Color processing | NA |
| Synchronization | free running, trigger |
| Trigger sources | Hardware, Software, ActionCommand |
| Trigger delay | 0 β¦ 2 sec, tracking and buffering of up to 256 trigger signals |
| Internal image buffer | 512 MB |
| Data interface | Dual Gigabit Ethernet, Transfer rate 2000 Mbits/sec, Connector: 2 x 8P8C Modular Jack (RJ45), screwable type |
| Process interface | M8 / 8 pins |
| Power supply | via M8 / 8 pins |
| Lens mount | C-mount |
| Width | 60 mm |
| Height | 60 mm |
| Depth | 52.4 mm |
| Weight | β€ 340 g |
| Material | housing: aluminum |
| Voltage supply range +Vs | 12 β¦ 24 V DC (external power supply), 36 β¦ 57 V DC (Power over Ethernet) |
| Power consumption | Approx. 6.2 W @ 24 VDC, Approx. 5.2 W @ 48 VDC (PoE) |
| Flash memory size | 128 kB |
| Operating temperature | #ERROR! |
| Humidity | 10 β¦ 90 % (non-condensing) |
| Protection class | IP 40 |
