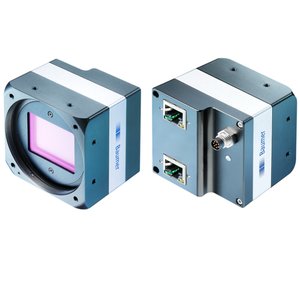

Baumer LXG-250C Industrial Camera
The Baumer LXG-250C Industrial Camera offers a 56.4 dB dynamic range, Global shutter, M58-mount (F-mount, M42, C-mount via adapter), and onsemi PYTHON 25K connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
| Brand | Baumer |
| Product Type | Industrial Camera |
| Model Number | LXG-250C |
Baumer LXG-250C Industrial Camera – Technical Specifications
| Specification | Value |
|---|---|
| Sensor | onsemi PYTHON 25K |
| Mono/Color | Color |
| Sensor type | APS-H CMOS |
| Shutter type | Global shutter |
| Resolution | 5120 × 5120 px |
| Pixel size | 4.5 × 4.5 µm |
| Exposure time | 0.03 … 1000 ms |
| Dark noise | 11.96 e- |
| Saturation capacity | 8425 e- |
| Dynamic range | 56.4 dB |
| Signal-to-noise ratio | 39.3 dB |
| Quantum efficiency | 36.6 % @ 465 nm, 39.7 % @ 536 nm, 41.2 % @ 631 nm |
| Image formats, interface frame rate max. | Full Frame, 5120 × 5120 px, max. 9 fps, Binning 2×2, 2560 × 2560 px, max. 9 fps, Binning 1×2, 5120 × 2560 px, max. 9 fps, Binning 2×1, 2560 × 5120 px, max. 9 fps |
| Image formats, aquisition frame rate max. (Burst Mode) | Full Frame, 5120 × 5120 px, max. 32 fps |
| Pixel formats | BayerGB8, BayerGB12, BayerGB12 Packed |
| Analog controls | Gain (0 … 23,5 dB), Offset (0 … 63 LSB 10 Bit) |
| Color models | Raw Bayer |
| Color processing | NA |
| Synchronization | free running, trigger |
| Trigger sources | Hardware, Software, ActionCommand |
| Trigger delay | 0 … 2 sec, tracking and buffering of up to 256 trigger signals |
| Internal image buffer | 512 MB |
| Data interface | Dual Gigabit Ethernet, Transfer rate 2000 Mbits/sec, Connector: 2 x 8P8C Modular Jack (RJ45), screwable type |
| Process interface | M8 / 8 pins |
| Power supply | via M8 / 8 pins |
| Lens mount | M58-mount (F-mount, M42, C-mount via adapter) |
| Width | 60 mm |
| Height | 60 mm |
| Depth | 56.32 mm |
| Weight | ≤ 320 g (M58-mount) |
| Material | housing: aluminum |
| Voltage supply range +Vs | 12 … 24 V DC (external power supply), 36 … 57 V DC (Power over Ethernet) |
| Power consumption | Approx. 5.4 W @ 24 VDC (sequential readout), Approx. 7.6 W @ 48 VDC (PoE. sequential readout) |
| Flash memory size | 128 kB |
| Operating temperature | #ERROR! |
| Humidity | 10 … 90 % (non-condensing) |
| Protection class | IP 40 |
