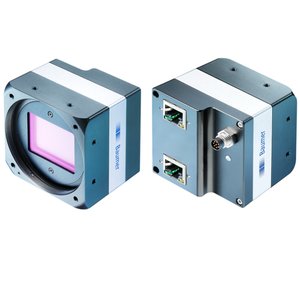

Baumer LXG-120M Industrial Camera
The Baumer LXG-120M Industrial Camera offers a 57.8 dB dynamic range, Global shutter, M58-mount (F-mount, M42, C-mount via adapter), and ams (CMOSIS) CMV12000 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
| Brand | Baumer |
| Product Type | Industrial Camera |
| Model Number | LXG-120M |
Baumer LXG-120M Industrial Camera – Technical Specifications
| Specification | Value |
|---|---|
| Sensor | ams (CMOSIS) CMV12000 |
| Mono/Color | Mono |
| Sensor type | APS-C CMOS |
| Shutter type | Global shutter |
| Resolution | 4096 × 3072 px |
| Pixel size | 5.5 × 5.5 µm |
| Exposure time | 0.04 … 1000 ms |
| Dark noise | 11.64 e- |
| Saturation capacity | 9452 e- |
| Dynamic range | 57.8 dB |
| Signal-to-noise ratio | 39.8 dB |
| Quantum efficiency | 44 % @ 536 nm |
| Image formats, interface frame rate max. | Full Frame, 4096 × 3072 px, max. 19 fps, Binning 2×2, 2048 × 1536 px, max. 19 fps, Binning 1×2, 4096 × 1536 px, max. 19 fps, Binning 2×1, 2048 × 3072 px, max. 19 fps |
| Image formats, aquisition frame rate max. (Burst Mode) | Full Frame, 4096 × 3072 px, max. 50 fps |
| Pixel formats | Mono8, Mono12, Mono12 Packed |
| Analog controls | Gain (0 … 12 dB), Offset (0 … 255 LSB 12 Bit) |
| Color models | Mono |
| Synchronization | free running, trigger |
| Trigger sources | Hardware, Software, ActionCommand |
| Trigger delay | 0 … 2 sec, tracking and buffering of up to 256 trigger signals |
| Internal image buffer | 512 MB |
| Data interface | Dual Gigabit Ethernet, Transfer rate 2000 Mbits/sec, Connector: 2 x 8P8C Modular Jack (RJ45), screwable type |
| Process interface | M8 / 8 pins |
| Power supply | via M8 / 8 pins |
| Lens mount | M58-mount (F-mount, M42, C-mount via adapter) |
| Width | 60 mm |
| Height | 60 mm |
| Depth | 54.25 mm |
| Weight | ≤ 290 g (M58-mount) |
| Material | housing: aluminum |
| Voltage supply range +Vs | 12 … 24 V DC (external power supply), 36 … 57 V DC (Power over Ethernet) |
| Power consumption | Approx. 7.0 W @ 24 VDC, Approx. 6.5 W @ 48 VDC (PoE) |
| Flash memory size | 128 kB |
| Operating temperature | #ERROR! |
| Humidity | 10 … 90 % (non-condensing) |
| Protection class | IP 40 |
