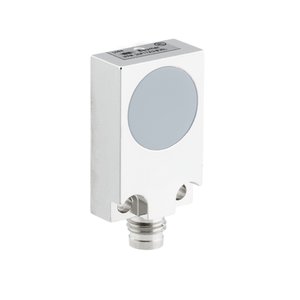

Baumer IWFM 20I9501/S35 Proximity Sensor
The Baumer IWFM 20I9501/S35 Proximity Sensor offers a Rectangular design, 2 … 5 mm sensing distance, Current output output, Flush mounting type, and Connector M8 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IWFM 20I9501/S35 |
Baumer IWFM 20I9501/S35 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Measuring distance Sd | 2 … 5 mm |
| Resolution | - |
| Repeat accuracy | 0.01 mm |
| Linearity error | ± 100 µm |
| Temperature drift | - |
| Response time (factory characteristic) | - |
| Voltage supply range +Vs | 15 … 30 VDC |
| Current consumption max. (no load) | 35 mA |
| Output circuit | Current output |
| Output signal | 4 ... 20 mA |
| Load resistance | - |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 20 mm |
| Housing length | 35 mm |
| Connection types | Connector M8 |
| Tightening torque max. | - |
| Operating temperature | 0 … +60 °C |
| Protection class | IP 67 |
Send Your Inquiry for Baumer Inductive Distance Sensor IWFM 20I9501/S35 Article No: 10123624 with cost-effective solutions. Essential Technical Specs of IWFM 20I9501/S35, 10123624 are Flush mounting type with a measuring distance of 2 … 5 mm. It delivers - resolution, ensuring repeat accuracy of 0.01 mm. The linearity error is ± 100 µm, with a temperature drift of -. The factory-set response time is -, making it ideal for high-speed applications. It operates within an 15 … 30 VDC voltage supply range, consuming only 35 mA. The Rectangular design includes a PBT sensing face and an Brass nickel plated housing for durability. The compact structure has an 20 mm dimension and an 35 mm housing length. It connects via a Connector M8 and operates in temperatures between 0 … +60 °C with IP 67 protection. Capture the Best Deal with a Quote for your requirement of Inductive Distance Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
