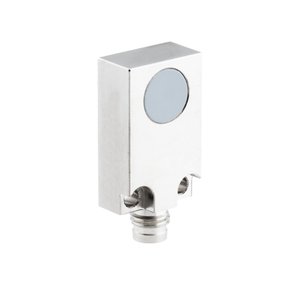

Baumer IWFM 18L9504/S35A Proximity Sensor
The Baumer IWFM 18L9504/S35A Proximity Sensor offers a Rectangular design, 0 … 4 mm sensing distance, Voltage - / current output output, Flush mounting type, and Connector M8 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IWFM 18L9504/S35A |
Baumer IWFM 18L9504/S35A Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Measuring distance Sd | 0 … 4 mm |
| Resolution | < 0.005 mm |
| Repeat accuracy | 0.01 mm |
| Linearity error | ± 160 µm |
| Temperature drift | ± 4 % (Full Scale) |
| Response time (factory characteristic) | < 2 ms |
| Voltage supply range +Vs | 15 … 30 VDC |
| Current consumption max. (no load) | 40 mA |
| Output circuit | Voltage - / current output |
| Output signal | 0 ... 10 V / 4 ... 20 mA |
| Load resistance | > 1000 Ohm (Uout ) / 330 ... 1000 Ohm (Iout) |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 18 mm |
| Housing length | 30 mm |
| Connection types | Connector M8 |
| Tightening torque max. | - |
| Operating temperature | -10 … +70 °C |
| Protection class | IP 67 |
Talk to Our Engineer for Baumer Inductive Distance Sensor IWFM 18L9504/S35A Article No: 10147042 with exclusive offers. Core System Specifications of IWFM 18L9504/S35A, 10147042 are Flush mounting type with a measuring distance of 0 … 4 mm. It delivers < 0.005 mm resolution, ensuring repeat accuracy of 0.01 mm. The linearity error is ± 160 µm, with a temperature drift of ± 4 % (Full Scale). The factory-set response time is < 2 ms, making it ideal for high-speed applications. It operates within an 15 … 30 VDC voltage supply range, consuming only 40 mA. The Rectangular design includes a PBT sensing face and an Brass nickel plated housing for durability. The compact structure has an 18 mm dimension and an 30 mm housing length. It connects via a Connector M8 and operates in temperatures between -10 … +70 °C with IP 67 protection. Don't Miss Out on a Quote for your requirement of Inductive Distance Sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
