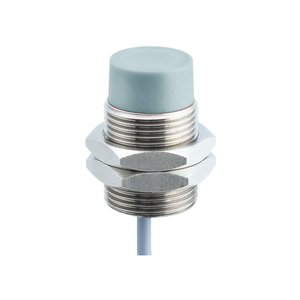

Baumer IR30.P24S-N35.PV1Z.7BCV Proximity Sensor
The Baumer IR30.P24S-N35.PV1Z.7BCV Proximity Sensor offers a Cylindrical threaded design, 24 mm sensing distance, PNP complementary (NO / NC) output, Non-flush mounting type, and Cable, L=2 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IR Series.
| Nominal sensing distance Sn | 24 mm |
| Mounting type | Non-flush |
| Output circuit | PNP complementary (NO / NC) |
Baumer IR30.P24S-N35.PV1Z.7BCV Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Non-flush |
| Nominal sensing distance Sn | 24 mm |
| Hysteresis | 3 β¦ 20 % of Sr |
| Output indicator | LED red |
| Switching frequency | 500 Hz |
| Voltage supply range +Vs | 6 β¦ 36 VDC |
| Current consumption max. (no load) | 10 mA |
| Output circuit | PNP complementary (NO / NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 30 mm |
| Housing length | 35 mm |
| Connection types | Cable, L=2 m |
| Tightening torque max. | 140 Nm |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
Please speak to our Technical Engineer for Baumer Switch with PBT Material Housing IR30.P24S-N35.PV1Z.7BCV part no: 11174033 at attractive prices. Technical Specs Summary of IR30.P24S-N35.PV1Z.7BCV, 11174033 includes Non-flush Mounting type. The sensor features a nominal sensing distance of 24 mm and a high switching frequency of 500 Hz, ensuring rapid response times. It operates within a voltage supply range of 6 β¦ 36 VDC, with a low current consumption of just 10 mA. The output circuit is a PNP complementary (NO / NC), capable of handling up to 200 mA of output current. The sensor's design includes a robust Cylindrical threaded housing made from high-grade Brass nickel plated, providing durability in demanding environments. With a compact dimension of 30 mm, it fits seamlessly into tight spaces. The sensor is equipped with a reliable Cable, L=2 m. Match Your Needs with a Quote for your requirement of Baumer Switch with PBT Material Housing. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
