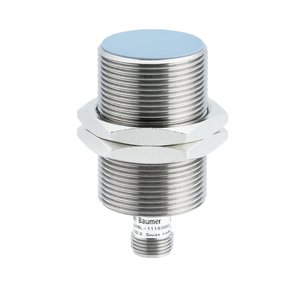

Baumer IR30.D24L-N60.IA1E.7BO Proximity Sensor
The Baumer IR30.D24L-N60.IA1E.7BO Proximity Sensor offers a Cylindrical threaded design, 0 … 24 mm sensing distance, Current output output, Non-flush mounting type, and Connector M12 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IR30.D24L-N60.IA1E.7BO |
Baumer IR30.D24L-N60.IA1E.7BO Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Non-flush |
| Measuring distance Sd | 0 … 24 mm |
| Resolution | < 0.005 mm (stat.), < 0.01 mm (dynam.) |
| Repeat accuracy | 0.02 mm |
| Linearity error | ± 480 µm |
| Temperature drift | ± 6 % (Full Scale) |
| Response time (factory characteristic) | < 5 ms |
| Voltage supply range +Vs | 8 … 36 VDC |
| Current consumption max. (no load) | 20 mA |
| Output circuit | Current output |
| Output signal | 4 ... 20 mA |
| Load resistance | < 50 Ohm/V * Vs - 250 Ohm > 500 Ohm (Vs = 30 … 36 VDC) |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 30 mm |
| Housing length | 60 mm |
| Connection types | Connector M12 |
| Tightening torque max. | 100 Nm |
| Operating temperature | -25 … +75 °C |
| Protection class | IP 67 |
Please speak to our Technical Engineer for Baumer Inductive Distance Sensor IR30.D24L-N60.IA1E.7BO Article No: 11179051 at attractive prices. Technical Specs Summary of IR30.D24L-N60.IA1E.7BO, 11179051 includes Non-flush mounting type with a measuring distance of 0 … 24 mm. It delivers < 0.005 mm (stat.), < 0.01 mm (dynam.) resolution, ensuring repeat accuracy of 0.02 mm. The linearity error is ± 480 µm, with a temperature drift of ± 6 % (Full Scale). The factory-set response time is < 5 ms, making it ideal for high-speed applications. It operates within an 8 … 36 VDC voltage supply range, consuming only 20 mA. The Cylindrical threaded design includes a PBT sensing face and an Brass nickel plated housing for durability. The compact structure has an 30 mm dimension and an 60 mm housing length. It connects via a Connector M12 and operates in temperatures between -25 … +75 °C with IP 67 protection. Match Your Needs with a Quote for your requirement of Inductive Distance Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
