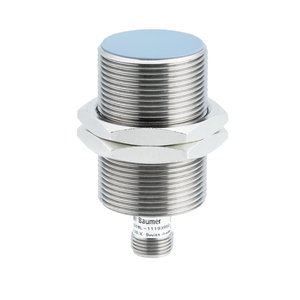

Baumer IR30.D18L-F60.UA1E.7BO Proximity Sensor
The Baumer IR30.D18L-F60.UA1E.7BO Proximity Sensor offers a Cylindrical threaded design, 0 … 18 mm sensing distance, Voltage output output, Flush mounting type, and Connector M12 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IR30.D18L-F60.UA1E.7BO |
Baumer IR30.D18L-F60.UA1E.7BO Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Measuring distance Sd | 0 … 18 mm |
| Resolution | < 0.005 mm (stat.), < 0.01 mm (dynam.) |
| Repeat accuracy | 0.02 mm |
| Linearity error | ± 360 µm |
| Temperature drift | ± 6 % (Full Scale) |
| Response time (factory characteristic) | < 5 ms |
| Voltage supply range +Vs | 12 … 36 VDC |
| Current consumption max. (no load) | 20 mA |
| Output circuit | Voltage output |
| Output signal | 0 ... 10 VDC |
| Load resistance | > 4000 Ohm |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 30 mm |
| Housing length | 60 mm |
| Connection types | Connector M12 |
| Tightening torque max. | 100 Nm |
| Operating temperature | -25 … +75 °C |
| Protection class | IP 67 |
Obtain a Quote for Baumer Inductive Distance Sensor IR30.D18L-F60.UA1E.7BO Article No: 11179028 at economical prices. Specifications Overview for IR30.D18L-F60.UA1E.7BO, 11179028 reveals Flush mounting type with a measuring distance of 0 … 18 mm. It delivers < 0.005 mm (stat.), < 0.01 mm (dynam.) resolution, ensuring repeat accuracy of 0.02 mm. The linearity error is ± 360 µm, with a temperature drift of ± 6 % (Full Scale). The factory-set response time is < 5 ms, making it ideal for high-speed applications. It operates within an 12 … 36 VDC voltage supply range, consuming only 20 mA. The Cylindrical threaded design includes a PBT sensing face and an Brass nickel plated housing for durability. The compact structure has an 30 mm dimension and an 60 mm housing length. It connects via a Connector M12 and operates in temperatures between -25 … +75 °C with IP 67 protection. Take the First Step with a Quote for your requirement of Inductive Distance Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
