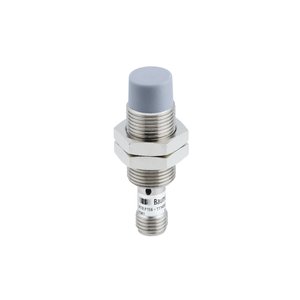

IR18.P15S-N45.NO1Z.7BO: 11148820 - Baumer Switch for Control Systems
Technical Specifications of Baumer Switch for Control Systems IR18.P15S-N45.NO1Z.7BO 11148820:
Spec | Value |
---|---|
Nominal sensing distance Sn | 15 mm |
Mounting type | Non-flush |
Output circuit | NPN make function (NO) |
Connection types | Connector M12 |
Baumer Switch for Control Systems IR18.P15S-N45.NO1Z.7BO, 11148820 Technical Specifications:
Specification | Value |
---|---|
Mounting type | Non-flush |
Nominal sensing distance Sn | 15 mm |
Hysteresis | 3 … 20 % of Sr |
Output indicator | 3 port LED red |
Switching frequency | 400 Hz |
Voltage supply range +Vs | 6 … 36 VDC |
Current consumption max. (no load) | 10 mA |
Output circuit | NPN make function (NO) |
Voltage drop Vd | <2 VDC |
Output current | 100 mA |
Design | Cylindrical threaded |
Material (sensing face) | PBT |
Housing material | Brass nickel plated |
Dimension | 18 mm |
Housing length | 45 mm |
Connection types | Connector M12 |
Tightening torque max. | 40 Nm |
Operating temperature | 0 … +65 °C |
Protection class | IP 67 |
Please speak to our Technical Engineer for Baumer Switch for Control Systems IR18.P15S-N45.NO1Z.7BO part no: 11148820 at attractive prices. Technical Specs Summary of IR18.P15S-N45.NO1Z.7BO, 11148820 includes Non-flush Mounting type. The sensor features a nominal sensing distance of 15 mm and a high switching frequency of 400 Hz, ensuring rapid response times. It operates within a voltage supply range of 6 … 36 VDC, with a low current consumption of just 10 mA. The output circuit is a NPN make function (NO), capable of handling up to 100 mA of output current. The sensor's design includes a robust Cylindrical threaded housing made from high-grade Brass nickel plated, providing durability in demanding environments. With a compact dimension of 18 mm, it fits seamlessly into tight spaces. The sensor is equipped with a reliable Connector M12. Match Your Needs with a Quote for your requirement of Baumer Switch for Control Systems. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
