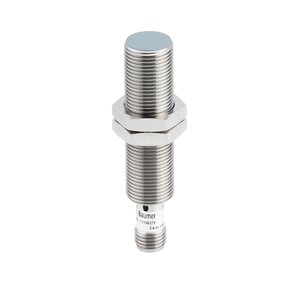

Baumer IR18.P12S-F60.NO1Z.7BO Proximity Sensor
The Baumer IR18.P12S-F60.NO1Z.7BO Proximity Sensor offers a Cylindrical threaded design, 12 mm sensing distance, NPN make function (NO) output, Flush mounting type, and Connector M12 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IR Series.
| Nominal sensing distance Sn | 12 mm |
| Mounting type | Flush |
| Output circuit | NPN make function (NO) |
Baumer IR18.P12S-F60.NO1Z.7BO Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 12 mm |
| Hysteresis | 3 β¦ 20 % of Sr |
| Output indicator | 3 port LED red |
| Switching frequency | 400 Hz |
| Voltage supply range +Vs | 6 β¦ 36 VDC |
| Current consumption max. (no load) | 10 mA |
| Output circuit | NPN make function (NO) |
| Voltage drop Vd | <2 VDC |
| Output current | 100 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 18 mm |
| Housing length | 60 mm |
| Connection types | Connector M12 |
| Tightening torque max. | 40 Nm |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
Reach Us by Email for Baumer Switch With NPN Output Circuit IR18.P12S-F60.NO1Z.7BO part no: 11148845 at Discounted Rates. Key Technical Features of IR18.P12S-F60.NO1Z.7BO, 11148845 are Flush Mounting type. The sensor features a nominal sensing distance of 12 mm and a high switching frequency of 400 Hz, ensuring rapid response times. It operates within a voltage supply range of 6 β¦ 36 VDC, with a low current consumption of just 10 mA. The output circuit is a NPN make function (NO), capable of handling up to 100 mA of output current. The sensor's design includes a robust Cylindrical threaded housing made from high-grade Brass nickel plated, providing durability in demanding environments. With a compact dimension of 18 mm, it fits seamlessly into tight spaces. The sensor is equipped with a reliable Connector M12. Navigate Your Needs with a Quote for your requirement of Baumer Switch With NPN Output Circuit. Our pricing and support are unrivaled, especially when compared to other Competitors.
