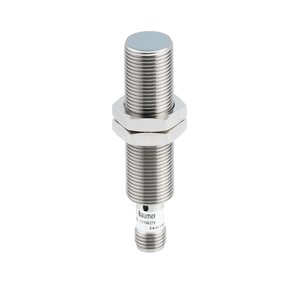

Baumer IR18.P10S-F60.PO1Z.7CO/Z001_E009 Proximity Sensor
The Baumer IR18.P10S-F60.PO1Z.7CO/Z001_E009 Proximity Sensor offers a Cylindrical threaded design, 10 mm sensing distance, PNP make function (NO) output, Flush mounting type, and Connector M12 4 pin connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IR Series.
| Nominal sensing distance Sn | 10 mm |
| Mounting type | Flush |
| Output circuit | PNP make function (NO) |
Baumer IR18.P10S-F60.PO1Z.7CO/Z001_E009 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 10 mm |
| Hysteresis | 2 β¦ 18 % of Sr |
| Output indicator | 3 port LED red |
| Switching frequency | 800 Hz |
| Voltage supply range +Vs | 6 β¦ 36 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | PNP make function (NO) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated, chromium plated |
| Dimension | 18 mm |
| Housing length | 60 mm |
| Connection types | Connector M12 4 pin |
| Tightening torque max. | 40 Nm |
| Operating temperature | -40 β¦ +75 Β°C |
| Protection class | IP 67 |
Talk to Our Engineer for Baumer Marine Switch IR18.P10S-F60.PO1Z.7CO/Z001_E009 part no: 11158437 with exclusive offers. Core System Specifications of IR18.P10S-F60.PO1Z.7CO/Z001_E009, 11158437 are Flush Mounting type. The sensor features a nominal sensing distance of 10 mm and a high switching frequency of 800 Hz, ensuring rapid response times. It operates within a voltage supply range of 6 β¦ 36 VDC, with a low current consumption of just 12 mA. The output circuit is a PNP make function (NO), capable of handling up to 200 mA of output current. The sensor's design includes a robust Cylindrical threaded housing made from high-grade Brass nickel plated, chromium plated, providing durability in demanding environments. With a compact dimension of 18 mm, it fits seamlessly into tight spaces. The sensor is equipped with a reliable Connector M12 4 pin. Don't Miss Out on a Quote for your requirement of Baumer Marine Switch. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
