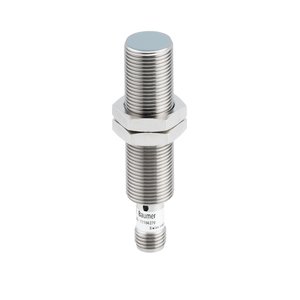

Baumer IR18.P06F-F60.NC1Z.7BO Proximity Sensor
The Baumer IR18.P06F-F60.NC1Z.7BO Proximity Sensor offers a Cylindrical threaded design, 6 mm sensing distance, NPN break function (NC) output, Flush mounting type, and Connector M12 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IR Series.
| Nominal sensing distance Sn | 6 mm |
| Mounting type | Flush |
| Output circuit | NPN break function (NC) |
Baumer IR18.P06F-F60.NC1Z.7BO Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 6 mm |
| Hysteresis | 3 β¦ 20 % of Sr |
| Output indicator | 3 port LED red |
| Switching frequency | 500 Hz |
| Voltage supply range +Vs | 5 β¦ 36 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | NPN break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 18 mm |
| Housing length | 60 mm |
| Connection types | Connector M12 |
| Tightening torque max. | 40 Nm |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
Please speak to our Technical Engineer for Baumer 6 mm NPN Proximity Switch IR18.P06F-F60.NC1Z.7BO part no: 11119457 at attractive prices. Technical Specs Summary of IR18.P06F-F60.NC1Z.7BO, 11119457 includes Flush Mounting type. The sensor features a nominal sensing distance of 6 mm and a high switching frequency of 500 Hz, ensuring rapid response times. It operates within a voltage supply range of 5 β¦ 36 VDC, with a low current consumption of just 12 mA. The output circuit is a NPN break function (NC), capable of handling up to 200 mA of output current. The sensor's design includes a robust Cylindrical threaded housing made from high-grade Brass nickel plated, providing durability in demanding environments. With a compact dimension of 18 mm, it fits seamlessly into tight spaces. The sensor is equipped with a reliable Connector M12. Match Your Needs with a Quote for your requirement of Baumer 6 mm NPN Proximity Switch. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
