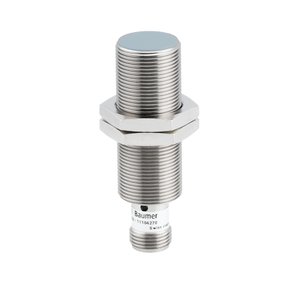

Baumer IR18.D10L-F60.GP2I.7BF/A014 Proximity Sensor
The Baumer IR18.D10L-F60.GP2I.7BF/A014 Proximity Sensor offers a Cylindrical threaded design, 0 … 10 mm sensing distance, Push-pull, IO-Link dual channel output, Flush mounting type, and Connector M12 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IR18.D10L-F60.GP2I.7BF/A014 |
Baumer IR18.D10L-F60.GP2I.7BF/A014 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Measuring distance Sd | 0 … 10 mm |
| Resolution | < 0.005 mm (High Accuracy Mode) |
| Repeat accuracy | 0.015 mm |
| Linearity error | ± 40 µm (S = 0 ... 8 mm), ± 160 µm (S = 0 ... 10 mm) |
| Temperature drift | ± 3 % (Full Scale) |
| Response time (factory characteristic) | < 1 ms |
| Voltage supply range +Vs | 8 … 36 VDC |
| Current consumption max. (no load) | 20 mA |
| Output circuit | Push-pull, IO-Link dual channel |
| Output signal | - |
| Load resistance | - |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 18 mm |
| Housing length | 60 mm |
| Connection types | Connector M12 |
| Tightening torque max. | 40 Nm |
| Operating temperature | -25 … +75 °C |
| Protection class | IP 67 |
Give Us a Call for Baumer Inductive Distance Sensor IR18.D10L-F60.GP2I.7BF/A014 Article No: 11236699 at the lowest pricing. In-depth Technical Analysis of IR18.D10L-F60.GP2I.7BF/A014, 11236699 feature Flush mounting type with a measuring distance of 0 … 10 mm. It delivers < 0.005 mm (High Accuracy Mode) resolution, ensuring repeat accuracy of 0.015 mm. The linearity error is ± 40 µm (S = 0 ... 8 mm), ± 160 µm (S = 0 ... 10 mm), with a temperature drift of ± 3 % (Full Scale). The factory-set response time is < 1 ms, making it ideal for high-speed applications. It operates within an 8 … 36 VDC voltage supply range, consuming only 20 mA. The Cylindrical threaded design includes a PBT sensing face and an Brass nickel plated housing for durability. The compact structure has an 18 mm dimension and an 60 mm housing length. It connects via a Connector M12 and operates in temperatures between -25 … +75 °C with IP 67 protection. Elevate Your Project with a Quote for your requirement of Inductive Distance Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
