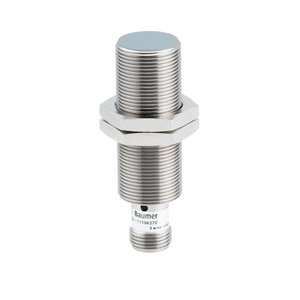

Baumer IR18.D08S-Q60.UA1Z.7BO Proximity Sensor
The Baumer IR18.D08S-Q60.UA1Z.7BO Proximity Sensor offers a Cylindrical threaded design, 0 β¦ 8 mm sensing distance, Voltage output output, Quasi-flush mounting type, and Connector M12 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IR18.D08S-Q60.UA1Z.7BO |
Baumer IR18.D08S-Q60.UA1Z.7BO Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Quasi-flush |
| Measuring distance Sd | 0 β¦ 8 mm |
| Resolution | < 0.002 mm (stat.), < 0.006 mm (dynam.) |
| Repeat accuracy | 0.015 mm |
| Linearity error | Β± 240 Β΅m (S = 2 ... 6 mm), Β± 640 Β΅m (S = 0 ... 8 mm) |
| Temperature drift | Β± 2 % (Full Scale: 0 ... +60 Β°C), Β± 4 % (Full Scale: -10 ... +70 Β°C) |
| Response time (factory characteristic) | < 2 ms |
| Voltage supply range +Vs | 12 β¦ 36 VDC |
| Current consumption max. (no load) | 10 mA |
| Output circuit | Voltage output |
| Output signal | 0 ... 10 VDC |
| Load resistance | > 4000 Ohm |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 18 mm |
| Housing length | 60 mm |
| Connection types | Connector M12 |
| Tightening torque max. | 40 Nm |
| Operating temperature | -10 β¦ +70 Β°C |
| Protection class | IP 67 |
Obtain a Quote for Baumer Inductive Distance Sensor IR18.D08S-Q60.UA1Z.7BO Article No: 11123879 at economical prices. Specifications Overview for IR18.D08S-Q60.UA1Z.7BO, 11123879 reveals Quasi-flush mounting type with a measuring distance of 0 β¦ 8 mm. It delivers < 0.002 mm (stat.), < 0.006 mm (dynam.) resolution, ensuring repeat accuracy of 0.015 mm. The linearity error is Β± 240 Β΅m (S = 2 ... 6 mm), Β± 640 Β΅m (S = 0 ... 8 mm), with a temperature drift of Β± 2 % (Full Scale: 0 ... +60 Β°C), Β± 4 % (Full Scale: -10 ... +70 Β°C). The factory-set response time is < 2 ms, making it ideal for high-speed applications. It operates within an 12 β¦ 36 VDC voltage supply range, consuming only 10 mA. The Cylindrical threaded design includes a PBT sensing face and an Brass nickel plated housing for durability. The compact structure has an 18 mm dimension and an 60 mm housing length. It connects via a Connector M12 and operates in temperatures between -10 β¦ +70 Β°C with IP 67 protection. Take the First Step with a Quote for your requirement of Inductive Distance Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
