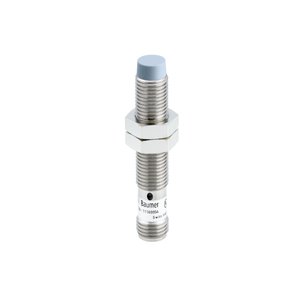

Baumer IR12.P10S-N50.PC1Z.7BO Proximity Sensor
The Baumer IR12.P10S-N50.PC1Z.7BO Proximity Sensor offers a Cylindrical threaded design, 10 mm sensing distance, PNP break function (NC) output, Non-flush mounting type, and Connector M12 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IR Series.
| Nominal sensing distance Sn | 10 mm |
| Mounting type | Non-flush |
| Output circuit | PNP break function (NC) |
Baumer IR12.P10S-N50.PC1Z.7BO Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Non-flush |
| Nominal sensing distance Sn | 10 mm |
| Hysteresis | 3 β¦ 20 % of Sr |
| Output indicator | 3 port LED red |
| Switching frequency | 1.5 kHz |
| Voltage supply range +Vs | 6 β¦ 36 VDC |
| Current consumption max. (no load) | 10 mA |
| Output circuit | PNP break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 100 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 12 mm |
| Housing length | 50 mm |
| Connection types | Connector M12 |
| Tightening torque max. | 15 Nm (A: 10 Nm) |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
Talk to Our Engineer for Baumer PNP NC M12 Connector Switch IR12.P10S-N50.PC1Z.7BO part no: 11148654 with exclusive offers. Core System Specifications of IR12.P10S-N50.PC1Z.7BO, 11148654 are Non-flush Mounting type. The sensor features a nominal sensing distance of 10 mm and a high switching frequency of 1.5 kHz, ensuring rapid response times. It operates within a voltage supply range of 6 β¦ 36 VDC, with a low current consumption of just 10 mA. The output circuit is a PNP break function (NC), capable of handling up to 100 mA of output current. The sensor's design includes a robust Cylindrical threaded housing made from high-grade Brass nickel plated, providing durability in demanding environments. With a compact dimension of 12 mm, it fits seamlessly into tight spaces. The sensor is equipped with a reliable Connector M12. Don't Miss Out on a Quote for your requirement of Baumer PNP NC M12 Connector Switch. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
