Baumer IR12.P10S-N50.NC1Z.7BCV Proximity Sensor

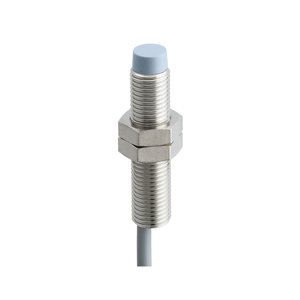

The Baumer IR12.P10S-N50.NC1Z.7BCV Proximity Sensor offers a Cylindrical threaded design, 10 mm sensing distance, NPN break function (NC) output, Non-flush mounting type, and Cable, L=2 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IR Series.
| Nominal sensing distance Sn | 10 mm |
| Mounting type | Non-flush |
| Output circuit | NPN break function (NC) |
Baumer IR12.P10S-N50.NC1Z.7BCV Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Non-flush |
| Nominal sensing distance Sn | 10 mm |
| Hysteresis | 3 β¦ 20 % of Sr |
| Output indicator | LED red |
| Switching frequency | 1.5 kHz |
| Voltage supply range +Vs | 6 β¦ 36 VDC |
| Current consumption max. (no load) | 10 mA |
| Output circuit | NPN break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 100 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 12 mm |
| Housing length | 50 mm |
| Connection types | Cable, L=2 m |
| Tightening torque max. | 15 Nm (A: 10 Nm) |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
Please speak to our Technical Engineer for Baumer Non-flush NPN NC Switch IR12.P10S-N50.NC1Z.7BCV part no: 11148366 at attractive prices. Technical Specs Summary of IR12.P10S-N50.NC1Z.7BCV, 11148366 includes Non-flush Mounting type. The sensor features a nominal sensing distance of 10 mm and a high switching frequency of 1.5 kHz, ensuring rapid response times. It operates within a voltage supply range of 6 β¦ 36 VDC, with a low current consumption of just 10 mA. The output circuit is a NPN break function (NC), capable of handling up to 100 mA of output current. The sensor's design includes a robust Cylindrical threaded housing made from high-grade Brass nickel plated, providing durability in demanding environments. With a compact dimension of 12 mm, it fits seamlessly into tight spaces. The sensor is equipped with a reliable Cable, L=2 m. Match Your Needs with a Quote for your requirement of Baumer Non-flush NPN NC Switch. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
