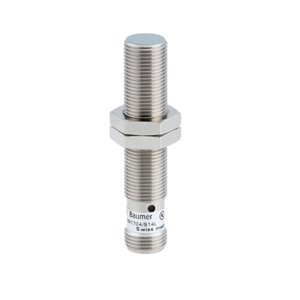

Baumer IR12.D06S-Q50.UA1Z.7BO Proximity Sensor
The Baumer IR12.D06S-Q50.UA1Z.7BO Proximity Sensor offers a Cylindrical threaded design, 0 … 6 mm sensing distance, Voltage output output, Quasi-flush mounting type, and Connector M12 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IR12.D06S-Q50.UA1Z.7BO |
Baumer IR12.D06S-Q50.UA1Z.7BO Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Quasi-flush |
| Measuring distance Sd | 0 … 6 mm |
| Resolution | < 0.005 mm (stat.), < 0.01 mm (dynam.) |
| Repeat accuracy | 0.01 mm |
| Linearity error | ± 300 µm (S = 1,5 ... 4,5 mm), ± 720 µm (S = 0 ... 6 mm) |
| Temperature drift | ± 4 % (Full Scale: 0 ... +60 °C), ± 6 % (Full Scale: -25 ... +75 °C) |
| Response time (factory characteristic) | < 1 ms |
| Voltage supply range +Vs | 12 … 36 VDC |
| Current consumption max. (no load) | 10 mA |
| Output circuit | Voltage output |
| Output signal | 0 ... 10 VDC |
| Load resistance | > 4000 Ohm |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 12 mm |
| Housing length | 50 mm |
| Connection types | Connector M12 |
| Tightening torque max. | 15 Nm (A: 10 Nm) |
| Operating temperature | -25 … +75 °C |
| Protection class | IP 67 |
Give Us a Call for Baumer Inductive Distance Sensor IR12.D06S-Q50.UA1Z.7BO Article No: 11123877 at the lowest pricing. In-depth Technical Analysis of IR12.D06S-Q50.UA1Z.7BO, 11123877 feature Quasi-flush mounting type with a measuring distance of 0 … 6 mm. It delivers < 0.005 mm (stat.), < 0.01 mm (dynam.) resolution, ensuring repeat accuracy of 0.01 mm. The linearity error is ± 300 µm (S = 1,5 ... 4,5 mm), ± 720 µm (S = 0 ... 6 mm), with a temperature drift of ± 4 % (Full Scale: 0 ... +60 °C), ± 6 % (Full Scale: -25 ... +75 °C). The factory-set response time is < 1 ms, making it ideal for high-speed applications. It operates within an 12 … 36 VDC voltage supply range, consuming only 10 mA. The Cylindrical threaded design includes a PBT sensing face and an Brass nickel plated housing for durability. The compact structure has an 12 mm dimension and an 50 mm housing length. It connects via a Connector M12 and operates in temperatures between -25 … +75 °C with IP 67 protection. Elevate Your Project with a Quote for your requirement of Inductive Distance Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
