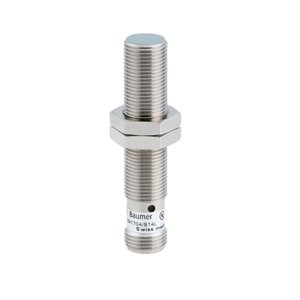

Baumer IR12.D04L-F60.UAME.7BF Proximity Sensor
The Baumer IR12.D04L-F60.UAME.7BF Proximity Sensor offers a Cylindrical threaded design, 0 … 4 mm sensing distance, Voltage output / PNP output, Flush mounting type, and Connector M12 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IR12 Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IR12.D04L-F60.UAME.7BF |
Baumer IR12.D04L-F60.UAME.7BF Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Measuring distance Sd | 0 … 4 mm |
| Resolution | < 0.003 mm (stat.), < 0.005 mm (dynam.) |
| Repeat accuracy | 0.01 mm |
| Linearity error | ± 16 µm |
| Temperature drift | ± 4 % (Full Scale) |
| Response time (factory characteristic) | < 1 ms |
| Voltage supply range +Vs | 12 … 36 VDC |
| Current consumption max. (no load) | 15 mA |
| Output circuit | Voltage output / PNP |
| Output signal | 0 ... 10 VDC |
| Load resistance | > 4000 Ohm |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 12 mm |
| Housing length | 60 mm |
| Connection types | Connector M12 |
| Tightening torque max. | 15 Nm (A: 10 Nm) |
| Operating temperature | -25 … +75 °C (Vs = 12 ... 30 VDC), -25 … +60 °C (Vs = 12 ... 36 VDC) |
| Protection class | IP 67 |
Please speak to our Technical Engineer for Baumer Inductive Distance Sensor IR12.D04L-F60.UAME.7BF Article No: 11130474 at attractive prices. Technical Specs Summary of IR12.D04L-F60.UAME.7BF, 11130474 includes Flush mounting type with a measuring distance of 0 … 4 mm. It delivers < 0.003 mm (stat.), < 0.005 mm (dynam.) resolution, ensuring repeat accuracy of 0.01 mm. The linearity error is ± 16 µm, with a temperature drift of ± 4 % (Full Scale). The factory-set response time is < 1 ms, making it ideal for high-speed applications. It operates within an 12 … 36 VDC voltage supply range, consuming only 15 mA. The Cylindrical threaded design includes a PBT sensing face and an Brass nickel plated housing for durability. The compact structure has an 12 mm dimension and an 60 mm housing length. It connects via a Connector M12 and operates in temperatures between -25 … +75 °C (Vs = 12 ... 30 VDC), -25 … +60 °C (Vs = 12 ... 36 VDC) with IP 67 protection. Match Your Needs with a Quote for your requirement of Inductive Distance Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
