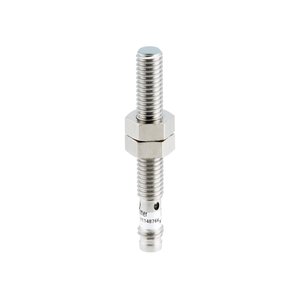

Baumer IR08.P03S-F46.PO1Z.7SL Proximity Sensor
The Baumer IR08.P03S-F46.PO1Z.7SL Proximity Sensor offers a Cylindrical threaded design, 3 mm sensing distance, PNP make function (NO) output, Flush mounting type, and Connector M8 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IR Series.
| Nominal sensing distance Sn | 3 mm |
| Mounting type | Flush |
| Output circuit | PNP make function (NO) |
Baumer IR08.P03S-F46.PO1Z.7SL Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 3 mm |
| Hysteresis | 3 β¦ 20 % of Sr |
| Output indicator | 3 port LED red |
| Switching frequency | 2 kHz |
| Voltage supply range +Vs | 6 β¦ 36 VDC |
| Current consumption max. (no load) | 10 mA |
| Output circuit | PNP make function (NO) |
| Voltage drop Vd | <2 VDC |
| Output current | 100 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Stainless steel |
| Dimension | 8 mm |
| Housing length | 46 mm |
| Connection types | Connector M8 |
| Tightening torque max. | 10 Nm (A: 7 Nm) |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
Please speak to our Technical Engineer for Baumer 3 mm, 2 kHz Frequency Switch IR08.P03S-F46.PO1Z.7SL part no: 11148757 at attractive prices. Technical Specs Summary of IR08.P03S-F46.PO1Z.7SL, 11148757 includes Flush Mounting type. The sensor features a nominal sensing distance of 3 mm and a high switching frequency of 2 kHz, ensuring rapid response times. It operates within a voltage supply range of 6 β¦ 36 VDC, with a low current consumption of just 10 mA. The output circuit is a PNP make function (NO), capable of handling up to 100 mA of output current. The sensor's design includes a robust Cylindrical threaded housing made from high-grade Stainless steel, providing durability in demanding environments. With a compact dimension of 8 mm, it fits seamlessly into tight spaces. The sensor is equipped with a reliable Connector M8. Match Your Needs with a Quote for your requirement of Baumer 3 mm, 2 kHz Frequency Switch. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
