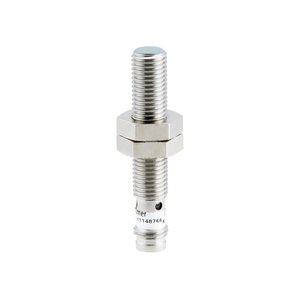

Baumer IR08.D03L-Q46.UA1Z.7SL Proximity Sensor
The Baumer IR08.D03L-Q46.UA1Z.7SL Proximity Sensor offers a Cylindrical threaded design, 0 … 3 mm sensing distance, Voltage output output, Quasi-flush mounting type, and Connector M8 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IR08 Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IR08.D03L-Q46.UA1Z.7SL |
Baumer IR08.D03L-Q46.UA1Z.7SL Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Quasi-flush |
| Measuring distance Sd | 0 … 3 mm |
| Resolution | < 0.003 mm (stat.), < 0.009 mm (dynam.,S = 0 ... 2 mm), < 0.018 mm (dynam.,S = 0 ... 3 mm) |
| Repeat accuracy | 0.01 mm |
| Linearity error | ± 10 µm (S = 0 ... 2 mm), ± 90 µm (S = 0 ... 3 mm) |
| Temperature drift | ± 2 % (Full Scale: S = 0 ... 2 mm), ± 6 % (Full Scale: S = 0 ... 3 mm) |
| Response time (factory characteristic) | < 2 ms |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption max. (no load) | 10 mA |
| Output circuit | Voltage output |
| Output signal | 0 ... 10 VDC |
| Load resistance | > 4000 Ohm |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Stainless steel |
| Dimension | 8 mm |
| Housing length | 46 mm |
| Connection types | Connector M8 |
| Tightening torque max. | 10 Nm (A: 7 Nm) |
| Operating temperature | -25 … +75 °C |
| Protection class | IP 67 |
IndMALL Automation Dealing offers Baumer Inductive Distance Sensor IR08.D03L-Q46.UA1Z.7SL Article No: 11141038 at unbeatable prices. The Main Technical Parameters of IR08.D03L-Q46.UA1Z.7SL, 11141038 feature a Quasi-flush mounting type with a measuring distance of 0 … 3 mm. It delivers < 0.003 mm (stat.), < 0.009 mm (dynam.,S = 0 ... 2 mm), < 0.018 mm (dynam.,S = 0 ... 3 mm) resolution, ensuring repeat accuracy of 0.01 mm. The linearity error is ± 10 µm (S = 0 ... 2 mm), ± 90 µm (S = 0 ... 3 mm), with a temperature drift of ± 2 % (Full Scale: S = 0 ... 2 mm), ± 6 % (Full Scale: S = 0 ... 3 mm). The factory-set response time is < 2 ms, making it ideal for high-speed applications. It operates within an 12 … 30 VDC voltage supply range, consuming only 10 mA. The Cylindrical threaded design includes a PBT sensing face and an Stainless steel housing for durability. The compact structure has an 8 mm dimension and an 46 mm housing length. It connects via a Connector M8 and operates in temperatures between -25 … +75 °C with IP 67 protection. Take the First Step with a Quote for your requirement of Inductive Distance Sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors.
