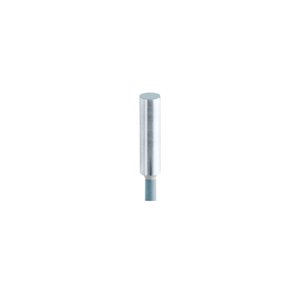

Baumer IR06.D03S-Q22.UA1Z.7SCV Proximity Sensor
The Baumer IR06.D03S-Q22.UA1Z.7SCV Proximity Sensor offers a Cylindrical smooth design, 0 β¦ 3 mm sensing distance, Voltage output output, Quasi-flush mounting type, and Cable, L=2 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IR06 Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IR06.D03S-Q22.UA1Z.7SCV |
Baumer IR06.D03S-Q22.UA1Z.7SCV Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Quasi-flush |
| Measuring distance Sd | 0 β¦ 3 mm |
| Resolution | < 0.001 mm (stat.), < 0.01 mm (dynam.) |
| Repeat accuracy | 0.02 mm |
| Linearity error | < 270 Β΅m (S = 0,2 ... 1,7 mm), - 150 β¦ 900 Β΅m (S = 0 ... 3 mm) |
| Temperature drift | Β± 4 % (Full Scale: 0 ... +60 Β°C), Β± 6 % (Full Scale: -25 ... +75 Β°C) |
| Response time (factory characteristic) | < 0.5 ms |
| Voltage supply range +Vs | 12 β¦ 36 VDC |
| Current consumption max. (no load) | 10 mA |
| Output circuit | Voltage output |
| Output signal | 0 ... 10 VDC |
| Load resistance | > 4000 Ohm |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical smooth |
| Material (sensing face) | PBT |
| Housing material | Stainless steel |
| Dimension | 6.5 mm |
| Housing length | 22 mm |
| Connection types | Cable, L=2 m |
| Tightening torque max. | - |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
Ask for the Pricing of Baumer Inductive Distance Sensor IR06.D03S-Q22.UA1Z.7SCV Article No: 11144078 at unbeatable prices. Detailed Specifications of IR06.D03S-Q22.UA1Z.7SCV, 11144078 feature Quasi-flush mounting type with a measuring distance of 0 β¦ 3 mm. It delivers < 0.001 mm (stat.), < 0.01 mm (dynam.) resolution, ensuring repeat accuracy of 0.02 mm. The linearity error is < 270 Β΅m (S = 0,2 ... 1,7 mm), - 150 β¦ 900 Β΅m (S = 0 ... 3 mm), with a temperature drift of Β± 4 % (Full Scale: 0 ... +60 Β°C), Β± 6 % (Full Scale: -25 ... +75 Β°C). The factory-set response time is < 0.5 ms, making it ideal for high-speed applications. It operates within an 12 β¦ 36 VDC voltage supply range, consuming only 10 mA. The Cylindrical smooth design includes a PBT sensing face and an Stainless steel housing for durability. The compact structure has an 6.5 mm dimension and an 22 mm housing length. It connects via a Cable, L=2 m and operates in temperatures between -25 β¦ +75 Β°C with IP 67 protection. Now's the Time to Secure a Quote for your requirement of Inductive Distance Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
