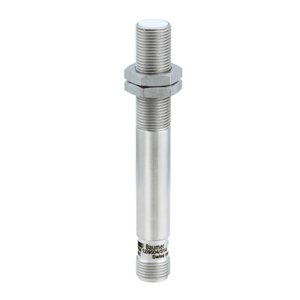

Baumer IPRM 12I9504/S14 Proximity Sensor
The Baumer IPRM 12I9504/S14 Proximity Sensor offers a Cylindrical threaded design, 0.5 … 1.5 mm sensing distance, Current output output, Quasi-flush mounting type, and Connector M12 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IPRM Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IPRM 12I9504/S14 |
Baumer IPRM 12I9504/S14 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Quasi-flush |
| Measuring distance Sd | 0.5 … 1.5 mm |
| Resolution | - |
| Repeat accuracy | - |
| Linearity error | ± 50 µm |
| Temperature drift | ± 10 µm |
| Response time (factory characteristic) | - |
| Voltage supply range +Vs | 15 … 30 VDC |
| Current consumption max. (no load) | 50 mA |
| Output circuit | Current output |
| Output signal | 0 ... 20 mA |
| Load resistance | - |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Material (sensing face) | Ceramic |
| Housing material | Steel (9 SMn (Pb) 28/36) |
| Dimension | 12 mm |
| Housing length | 90 mm |
| Connection types | Connector M12 |
| Tightening torque max. | - |
| Operating temperature | 0 … +60 °C |
| Protection class | IP 67 |
Obtain a Quote for Baumer Inductive Distance Sensor IPRM 12I9504/S14 Article No: 11017454 at economical prices. Specifications Overview for IPRM 12I9504/S14, 11017454 reveals Quasi-flush mounting type with a measuring distance of 0.5 … 1.5 mm. It delivers - resolution, ensuring repeat accuracy of -. The linearity error is ± 50 µm, with a temperature drift of ± 10 µm. The factory-set response time is -, making it ideal for high-speed applications. It operates within an 15 … 30 VDC voltage supply range, consuming only 50 mA. The Cylindrical threaded design includes a Ceramic sensing face and an Steel (9 SMn (Pb) 28/36) housing for durability. The compact structure has an 12 mm dimension and an 90 mm housing length. It connects via a Connector M12 and operates in temperatures between 0 … +60 °C with IP 67 protection. Take the First Step with a Quote for your requirement of Inductive Distance Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
