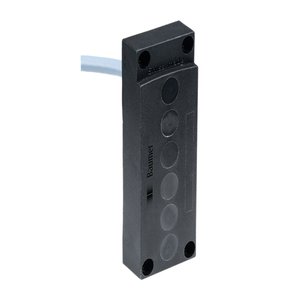

Baumer ILFK 12P1501/I06 Proximity Sensor
The Baumer ILFK 12P1501/I06 Proximity Sensor offers a Rectangular design, 2 mm sensing distance, PNP make function (NO) output, Flush mounting type, and Cable, L=2 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Mounting Type | Flush |
| Nominal sensing distance Sn | 2 mm |
| Output Circuit | PNP make function (NO) |
| Connection Types | Cable, L=2 m |
Baumer ILFK 12P1501/I06 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 2 mm |
| Hysteresis | 0.6 β¦ 20 % of Sr |
| Switching frequency | 2 kHz |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 20 mA |
| Output circuit | PNP make function (NO) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Material (sensing face) | PA 6 |
| Housing material | PA 6 |
| Dimension | 30 mm |
| Housing length | 79 mm |
| Connection types | Cable, L=2 m |
| Operating temperature | 0 β¦ +60 Β°C |
| Protection class | IP 67 |
Get A Quote for Baumer LED Red 2 kHz Miniature Sensors ILFK 12P1501/I06 part no: 10211800 at unbeatable prices. Detailed Specifications of ILFK 12P1501/I06, 10211800 feature Flush Mount Sensor, designed for precision applications with a 2 mm nominal sensing distance. The sensor features a output indicator and operates at a fast switching frequency of 2 kHz ensuring rapid response times. The voltage supply range is from 10 β¦ 30 VDC and the output circuit uses an PNP make function (NO), capable of handling an output current of up to 200 mA. Its Rectangular design and durable PA 6 (Polyamide) Housing material ensure reliability in industrial environments. The sensor has a compact housing length of 79 mm and overall dimensions of 30 mm. Equipped with an AB550 connection, it operates within a temperature range of 0 β¦ +60 Β°C. Match Your Needs with a Quote for your requirement of Baumer LED Red 2 kHz Miniature Sensors. Our pricing and support are unrivaled, especially when compared to other Distributors.
