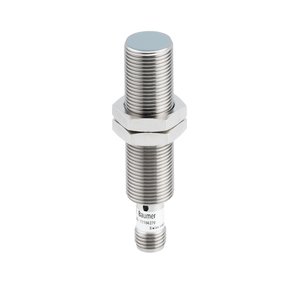

IFRM 18P37M1/S14L: 11013674 - Baumer 10 mm Inductive Proximity Switch
Technical Specifications of Baumer 10 mm Inductive Proximity Switch IFRM 18P37M1/S14L 11013674:
| Spec | Value |
|---|---|
| Nominal sensing distance Sn | 10 mm |
| Mounting type | Flush |
| Output circuit | PNP break function (NC) |
| Connection types | Connector M12 |
Baumer 10 mm Inductive Proximity Switch IFRM 18P37M1/S14L, 11013674 Technical Specifications:
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 10 mm |
| Hysteresis | 2 … 15 % of Sr |
| Output indicator | LED red |
| Switching frequency | 400 Hz |
| Voltage supply range +Vs | 6 … 36 VDC |
| Current consumption max. (no load) | 24 mA |
| Output circuit | PNP break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 18 mm |
| Housing length | 60 mm |
| Connection types | Connector M12 |
| Tightening torque max. | 40 Nm (Front: 28 Nm) |
| Operating temperature | -40 … +80 °C |
| Protection class | IP 67 |
Call us for Baumer 10 mm Inductive Proximity Switch IFRM 18P37M1/S14L part no: 11013674 at the best rates. Technical Attributes of IFRM 18P37M1/S14L, 11013674 are Flush Mounting type. The sensor features a nominal sensing distance of 10 mm and a high switching frequency of 400 Hz, ensuring rapid response times. It operates within a voltage supply range of 6 … 36 VDC, with a low current consumption of just 24 mA. The output circuit is a PNP break function (NC), capable of handling up to 200 mA of output current. The sensor's design includes a robust Cylindrical threaded housing made from high-grade Brass nickel plated, providing durability in demanding environments. With a compact dimension of 18 mm, it fits seamlessly into tight spaces. The sensor is equipped with a reliable Connector M12. Unlock Exclusive Pricing with a Quote for your requirement of Baumer 10 mm Inductive Proximity Switch. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
