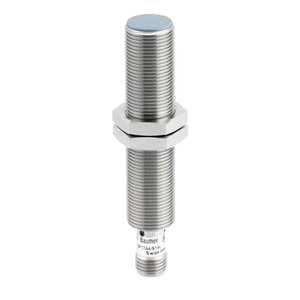

IFRM 18N37A4/S14L: 11111674 - Baumer 36 DC Voltage Inductive Switches
Technical Specifications of Baumer 36 DC Voltage Inductive Switches IFRM 18N37A4/S14L 11111674:
| Spec | Value |
|---|---|
| Nominal sensing distance Sn | 8 mm |
| Mounting type | Quasi-flush |
| Output circuit | NPN break function (NC) |
| Connection types | Connector M12 |
Baumer 36 DC Voltage Inductive Switches IFRM 18N37A4/S14L, 11111674 Technical Specifications:
| Specification | Value |
|---|---|
| Mounting type | Quasi-flush |
| Nominal sensing distance Sn | 8 mm |
| Hysteresis | 3 … 20 % of Sr |
| Switching frequency | 500 Hz |
| Voltage supply range +Vs | 6 … 36 VDC |
| Current consumption max. (no load) | 10 mA |
| Output circuit | NPN break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Operating pressure static | |
| Dimension | 18 mm |
| Housing length | 75 mm |
| Connection types | Connector M12 |
| Operating temperature | -25 … +75 °C |
| Protection class | IP 67 |
| Output indicator | 3 port LED red |
| Cable length | |
| Shielded | |
| Cable diameter |
Send Your Inquiry for Baumer 36 DC Voltage Inductive Switches IFRM 18N37A4/S14L part no: 11111674 with cost-effective solutions. Essential Technical Specs of IFRM 18N37A4/S14L, 11111674 are Quasi-flush Mounting type. The sensor features a nominal sensing distance of 8 mm and a high switching frequency of 500 Hz, ensuring rapid response times. It operates within a voltage supply range of 6 … 36 VDC, with a low current consumption of just 10 mA. The output circuit is a NPN break function (NC), capable of handling up to 200 mA of output current. The sensor's design includes a robust Cylindrical threaded housing made from high-grade Brass nickel plated, providing durability in demanding environments. With a compact dimension of 18 mm, it fits seamlessly into tight spaces. The sensor is equipped with a reliable Connector M12. Capture the Best Deal with a Quote for your requirement of Baumer 36 DC Voltage Inductive Switches. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
