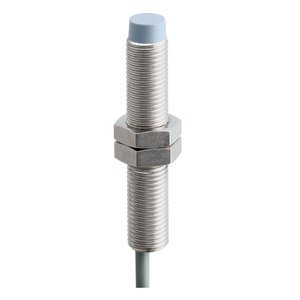

Baumer IFRM 12N33T1/PL Proximity Sensor
The Baumer IFRM 12N33T1/PL Proximity Sensor offers a Cylindrical threaded design, 6 mm sensing distance, NPN break function (NC) output, Non-flush mounting type, and Cable PUR 3 x 0,25, 2 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Product | IFRM 12N33T1/PL |
Baumer IFRM 12N33T1/PL Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Non-flush |
| Nominal sensing distance Sn | 6 mm |
| Hysteresis | 2 β¦ 15 % of Sr |
| Switching frequency | 2 kHz |
| Voltage supply range +Vs | 6 β¦ 30 VDC |
| Current consumption max. (no load) | 10 mA |
| Output circuit | NPN break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 12 mm |
| Housing length | 50 mm |
| Connection types | Cable PUR 3 x 0,25, 2 m |
| Operating temperature | -40 β¦ +80 Β°C |
| Protection class | IP 67 |
| Output indicator | LED red |
Ask for the Pricing of Baumer Non-flush Mounting Inductive Switch IFRM 12N33T1/PL part no: 11016682 at unbeatable prices. Detailed Specifications of IFRM 12N33T1/PL, 11016682 feature Non-flush Mounting type. The sensor features a nominal sensing distance of 6 mm and a high switching frequency of 2 kHz, ensuring rapid response times. It operates within a voltage supply range of 6 β¦ 30 VDC, with a low current consumption of just 10 mA. The output circuit is a NPN break function (NC), capable of handling up to 200 mA of output current. The sensor's design includes a robust Cylindrical threaded housing made from high-grade Brass nickel plated, providing durability in demanding environments. With a compact dimension of 12 mm, it fits seamlessly into tight spaces. The sensor is equipped with a reliable Cable PUR 3 x 0,25, 2 m. Now's the Time to Secure a Quote for your requirement of Baumer IFRM 12N33T1/PL Proximity Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
