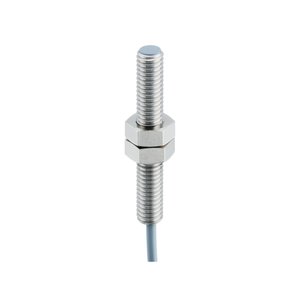

Baumer IFRM 08P37A1/L Proximity Sensor
The Baumer IFRM 08P37A1/L Proximity Sensor offers a Cylindrical threaded design, 2 mm sensing distance, PNP break function (NC) output, Flush mounting type, and Cable, L=2 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Product | IFRM 08P37A1/L |
Baumer IFRM 08P37A1/L Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 2 mm |
| Hysteresis | 3 β¦ 20 % of Sr |
| Switching frequency | 5 kHz |
| Voltage supply range +Vs | 6 β¦ 36 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | PNP break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Stainless steel |
| Dimension | 8 mm |
| Housing length | 40 mm |
| Connection types | Cable, L=2 m |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
| Output indicator | LED red |
Obtain a Quote for Baumer PNP NC Flush Inductive Switch IFRM 08P37A1/L part no: 10142010 at economical prices. Specifications Overview for IFRM 08P37A1/L, 10142010 reveals Flush Mounting type. The sensor features a nominal sensing distance of 2 mm and a high switching frequency of 5 kHz, ensuring rapid response times. It operates within a voltage supply range of 6 β¦ 36 VDC, with a low current consumption of just 12 mA. The output circuit is a PNP break function (NC), capable of handling up to 200 mA of output current. The sensor's design includes a robust Cylindrical threaded housing made from high-grade Stainless steel, providing durability in demanding environments. With a compact dimension of 8 mm, it fits seamlessly into tight spaces. The sensor is equipped with a reliable Cable, L=2 m. Take the First Step with a Quote for your requirement of Baumer PNP NC Flush Inductive Switch. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
