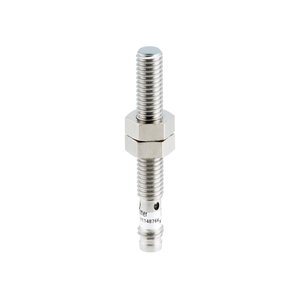

Baumer IFRM 08N37A1/S35L Proximity Sensor
The Baumer IFRM 08N37A1/S35L Proximity Sensor offers a Cylindrical threaded design, 2 mm sensing distance, NPN break function (NC) output, Flush mounting type, and Connector M8 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Product | IFRM 08N37A1/S35L |
Baumer IFRM 08N37A1/S35L Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 2 mm |
| Hysteresis | 3 β¦ 20 % of Sr |
| Switching frequency | 5 kHz |
| Voltage supply range +Vs | 6 β¦ 36 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | NPN break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Stainless steel |
| Dimension | 8 mm |
| Housing length | 46 mm |
| Connection types | Connector M8 |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
| Output indicator | 3 port LED red |
The Baumer IFRM 08N37A1/S35L is a rugged and space-efficient 2 mm flush-mounted inductive sensor equipped with a PBT sensing face for enhanced resistance to oils, chemicals, and wear. Built with a stainless steel cylindrical threaded housing and an 8 mm diameter, itβs ideal for confined industrial spaces where reliability and accuracy are critical. It operates on a wide voltage supply range of 6β36 VDC, drawing only 12 mA of current when idle, making it energy-efficient even in multi-sensor configurations. The NPN break function (NC) output provides fail-safe signaling, especially in safety-sensitive control systems or alarm-triggering circuits.
With a rapid switching frequency of 5 kHz, the sensor offers real-time response in high-speed automation lines. Its 46 mm housing length ensures compatibility with deeper or recessed mounting brackets. The M8 connector offers a secure and flexible wiring solution, while the 3-port red LED indicator makes sensor output status clearly visible during setup or diagnostics. The sensor meets IP67 protection standards, allowing reliable performance in dusty, humid, and vibration-prone environments. With a tested operating temperature range of -25Β°C to +75Β°C, this switch is engineered for resilience in challenging industrial applications. The Baumer PBT Material Sensing Face Switch IFRM 08N37A1/S35L delivers a balance of durability, accuracy, and ease of use trusted by engineers worldwide.
Applications of Baumer OT500.DL-GLIAJ.72F
The IFRM 08N37A1/S35L is widely deployed in automated material handling, compact machine tools, and rotational position feedback systems, where precise metal detection is essential for sequence control. Its break-function output makes it a preferred sensor in safety verification circuits, such as confirming door closure or part presence before machine engagement. The durable sensing face allows reliable use in harsh washdown zones and oil-rich cutting environments.
For junior engineers and students, this sensor provides a practical example of contactless detection and NC circuit logic integration. For senior technicians and automation designers, it offers reduced downtime through simplified diagnostics, dependable mechanical life, and solid electrical performance. The Baumer IFRM 08N37A1/S35L is the ideal choice when size, sensing accuracy, and rugged design come together in your automation solution.
