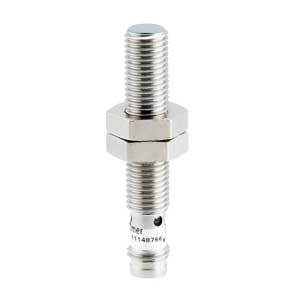

Baumer IFRM 08N17A1/S35L Proximity Sensor
The Baumer IFRM 08N17A1/S35L Proximity Sensor offers a Flush mouting, 2 mm sensing distance, NPN make function (NO) output, and Connector M8 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IRFM Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IFRM 08N17A1/S35L |
Baumer IFRM 08N17A1/S35L Proximity Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 2 mm |
| Hysteresis | 3 โฆ 20 % of Sr |
| Output indicator | 3 port LED red |
| Switching frequency | 5 kHz |
| Voltage supply range +Vs | 6 โฆ 36 VDC |
| Output circuit | NPN make function (NO) |
| Output current | 200 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Stainless steel |
| Dimension | 8 mm |
| Housing length | 46 mm |
| Connection types | Connector M8 |
| Cable characteristics | - |
| Operating temperature | -25 โฆ +75 ยฐC |
| Protection class | IP 67 |
The Baumer IFRM 08N17A1/S35L combines compact design with industrial-grade performance, offering a nominal sensing distance of 2 mm in flush-mount applications. It operates on a 6 to 36 VDC power supply and features an NPN make function (normally open) output, supporting up to 200 mA of switching current. With a rapid 5 kHz switching frequency, this sensor is perfectly suited for high-speed automation tasks such as part detection, edge positioning, and motion tracking.
Built with a robust cylindrical threaded body of stainless steel and a PBT sensing face, the sensor measures just 8 mm in diameter with a housing length of 46 mm, making it easy to integrate into narrow or embedded machine components. It includes short-circuit protection and reverse polarity protection for enhanced safety during wiring and commissioning. The sensor's M8 connector interface simplifies installation and replacement in the field.
Its IP67 protection rating ensures reliable operation in dusty, oily, and moisture-prone industrial settings, while the integrated 3-port red LED indicator allows quick visual diagnostics. Operating in a wide temperature range from -25ยฐC to +75ยฐC, the IFRM 08N17A1/S35L is trusted by engineers across industries for its accuracy, durability, and consistent performance under demanding conditions.
