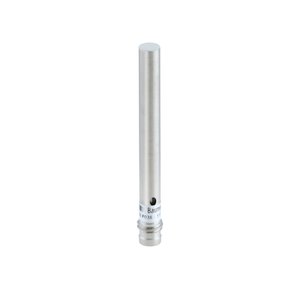

Baumer IFRM 06P17A4/S35L Proximity Sensor
The Baumer IFRM 06P17A4/S35L Proximity Sensor offers a Cylindrical smooth design, 2 mm scanning range, PNP make function (NO) output, Flush mounting type, and Connector M8 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Product | IFRM 06P17A4/S35L |
Baumer IFRM 06P17A4/S35L Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 2 mm |
| Hysteresis | 3 β¦ 20 % of Sr |
| Output indicator | 3 port LED red |
| Switching frequency | 5 kHz |
| Voltage supply range +Vs | 6 β¦ 36 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | PNP make function (NO) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Design | Cylindrical smooth |
| Housing material | Stainless steel |
| Dimension | 6.5 mm |
| Housing length | 56 mm |
| Connection types | Connector M8 |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
Get A Quote for Baumer 2mm, Connector M8 Inductive Switch IFRM 06P17A4/S35L part no: 10155368 at unbeatable prices. Detailed Specifications of IFRM 06P17A4/S35L, 10155368 feature Flush Mounting type. This sensor features a nominal sensing distance of 2 mm and a switching frequency of 5 kHz, making it ideal for high-speed applications. The output indicator is an 3 port LED red light, and the sensor operates within a voltage supply range of 6 β¦ 36 VDC, with a maximum current consumption of 12 mA. The output circuit is an PNP make function (NO). The sensor's Cylindrical smooth design is crafted from high-quality Stainless steel with LSR for durability. It has a compact dimension of 6.5 mm and is equipped with a reliable Connector M8 for easy integration. Match Your Needs with a Quote for your requirement of Baumer 2mm, Connector M8 Inductive Switch. Our pricing and support are unrivaled, especially when compared to other Distributors.
