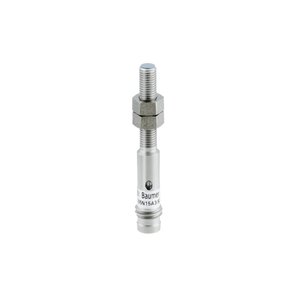

IFRM 05P37A3/S35L: 11082467 - Baumer Stainless Steel Subminiature Switch
Technical Specifications of Baumer Stainless Steel Subminiature Switch IFRM 05P37A3/S35L 11082467:
| Spec | Value |
|---|---|
| Nominal sensing distance Sn | 1.6 mm |
| Mounting type | Flush |
| Output circuit | PNP break function (NC) |
| Connection types | Connector M8 |
Baumer Stainless Steel Subminiature Switch IFRM 05P37A3/S35L, 11082467 Technical Specifications:
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 1.6 mm |
| Hysteresis | 2 … 20 % of Sr |
| Switching frequency | 3 kHz |
| Voltage supply range +Vs | 6 … 30 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | PNP break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | LCP |
| Housing material | Stainless steel |
| Operating pressure static | |
| Dimension | 5 mm |
| Housing length | 36 mm |
| Connection types | Connector M8 |
| Operating temperature | -25 … +75 °C |
| Protection class | IP 67 |
| Output indicator | 3 port LED red |
| Cable length | |
| Shielded | |
| Cable diameter |
Give Us a Call for Baumer Stainless Steel Subminiature Switch IFRM 05P37A3/S35L part no: 11082467 at the lowest pricing. In-depth Technical Analysis of IFRM 05P37A3/S35L, 11082467 feature Flush Mounting type. The sensor features a nominal sensing distance of 1.6 mm and a high switching frequency of 3 kHz, ensuring rapid response times. It operates within a voltage supply range of 6 … 30 VDC, with a low current consumption of just 12 mA. The output circuit is a PNP break function (NC), capable of handling up to 200 mA of output current. The sensor's design includes a robust Cylindrical threaded housing made from high-grade Stainless steel, providing durability in demanding environments. With a compact dimension of 5 mm, it fits seamlessly into tight spaces. The sensor is equipped with a reliable Connector M8. Elevate Your Project with a Quote for your requirement of Baumer Stainless Steel Subminiature Switch. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
