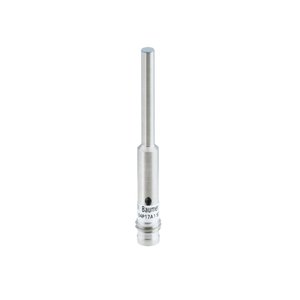

Baumer IFRM 04P37A1/S35L Proximity Sensor
The Baumer IFRM 04P37A1/S35L Proximity Sensor offers a Cylindrical smooth design, 1.6 mm scanning range, PNP break function (NC) output, Flush mounting type, and Connector M8 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Product | IFRM 04P37A1/S35L |
Baumer IFRM 04P37A1/S35L Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 1.6 mm |
| Hysteresis | 2 β¦ 20 % of Sr |
| Output indicator | 3 port LED red |
| Switching frequency | 3 kHz |
| Voltage supply range +Vs | 6 β¦ 30 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | PNP break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Design | Cylindrical smooth |
| Housing material | Stainless steel |
| Dimension | 4 mm |
| Housing length | 45 mm |
| Connection types | Connector M8 |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
Get A Quote for Baumer M8 Connector PNP Inductive Switch IFRM 04P37A1/S35L part no: 11082453 at the best price. Here are the brief Technical Specifications of IFRM 04P37A1/S35L, 11082453 are Flush Mounting type. This sensor features a nominal sensing distance of 1.6 mm and a switching frequency of 3 kHz, making it ideal for high-speed applications. The output indicator is an 3 port LED red light, and the sensor operates within a voltage supply range of 6 β¦ 30 VDC, with a maximum current consumption of 12 mA. The output circuit is an PNP break function (NC). The sensor's Cylindrical smooth design is crafted from high-quality Stainless steel with LSR for durability. It has a compact dimension of 4 mm and is equipped with a reliable Connector M8 for easy integration. It's Time to get a Quote for your requirement of Baumer M8 Connector PNP Inductive Switch. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
