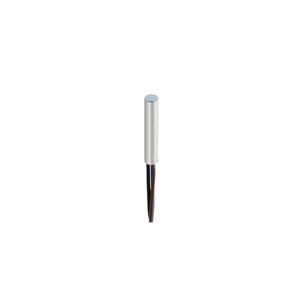

Baumer IFRM 04N35A5/Q Proximity Sensor

Name: Baumer IFRM 04N35A5/Q 10144459
Brand: Baumer
SKU: IFRM 04N35A5/Q
Rating: 4.6 (4 reviews)

The Baumer IFRM 04N35A5/Q Proximity Sensor offers a Cylindrical smooth design, 1 mm scanning range, NPN break function (NC) output, Flush mounting type, and Wires, 0,5 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.

Datasheet

Brand	Baumer
Product Type	Proximity Sensor
Product	IFRM 04N35A5/Q

Baumer IFRM 04N35A5/Q Proximity Sensor – Technical Specifications

Specification	Value
Mounting type	Flush
Nominal sensing distance Sn	1 mm
Hysteresis	2 … 20 % of Sr
Switching frequency	5 kHz
Voltage supply range +Vs	6 … 30 VDC
Current consumption max. (no load)	12 mA
Output circuit	NPN break function (NC)
Voltage drop Vd	<2 VDC
Output current	200 mA
Design	Cylindrical smooth
Housing material	Stainless steel
Dimension	4 mm
Housing length	15 mm
Connection types	Wires, 0,5 m
Operating temperature	-25 … +75 °C
Protection class	IP 67

Mail Us for your needs in Baumer NPN Break Function Proximity Switch IFRM 04N35A5/Q part no: 10144459 with budget-friendly prices. The Main Technical Parameters of IFRM 04N35A5/Q, 10144459 inludce Flush Mounting type. This sensor features a nominal sensing distance of 1 mm and a switching frequency of 5 kHz, making it ideal for high-speed applications and the sensor operates within a voltage supply range of 6 … 30 VDC, with a maximum current consumption of 12 mA. The output circuit is an NPN break function (NC). The sensor's Cylindrical smooth design is crafted from high-quality Stainless steel with LSR for durability. It has a compact dimension of 4 mm and is equipped with a reliable Wires, 0,5 m for easy integration. Customize Your Experience with a Quote for your requirement of Baumer NPN Break Function Proximity Switch. Experience the difference with our competitive pricing and superior support over other Suppliers.
