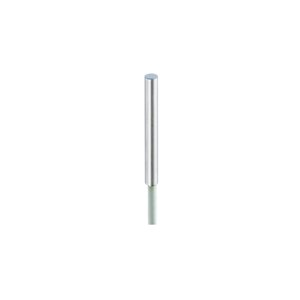

Baumer IFRM 04N35A1/KS35PL Proximity Sensor
The Baumer IFRM 04N35A1/KS35PL Proximity Sensor offers a Cylindrical smooth design, 1 mm scanning range, NPN break function (NC) output, Flush mounting type, and Flylead connector M8 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Product | IFRM 04N35A1/KS35PL |
Baumer IFRM 04N35A1/KS35PL Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 1 mm |
| Hysteresis | 2 β¦ 20 % of Sr |
| Output indicator | LED red |
| Switching frequency | 5 kHz |
| Voltage supply range +Vs | 6 β¦ 30 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | NPN break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Design | Cylindrical smooth |
| Housing material | Stainless steel |
| Dimension | 4 mm |
| Housing length | 25 mm |
| Connection types | Flylead connector M8 |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
Mail Us for Baumer Stainless-steel Inductive Switch IFRM 04N35A1/KS35PL part no: 10160286 at the lowest pricing. Technical Specs Summary of IFRM 04N35A1/KS35PL, 10160286 are Flush Mounting type. This sensor features a nominal sensing distance of 1 mm and a switching frequency of 5 kHz, making it ideal for high-speed applications. The output indicator is an LED red light, and the sensor operates within a voltage supply range of 6 β¦ 30 VDC, with a maximum current consumption of 12 mA. The output circuit is an NPN break function (NC). The sensor's Cylindrical smooth design is crafted from high-quality Stainless steel with LSR for durability. It has a compact dimension of 4 mm and is equipped with a reliable Flylead connector M8 for easy integration. Navigate Your Needs with a Quote for your requirement of Baumer Stainless-steel Inductive Switch. We excel in offering more cost-effective and supportive solutions than other Competitors.
