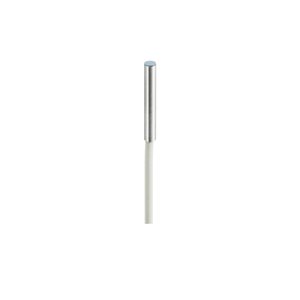

Baumer IFRM 04N15A3/L Proximity Sensor

Name: Baumer IFRM 04N15A3/L 10144442
Brand: Baumer
SKU: IFRM 04N15A3/L
Rating: 4.6 (4 reviews)

The Baumer IFRM 04N15A3/L Proximity Sensor offers a Cylindrical smooth design, 1 mm scanning range, NPN make function (NO) output, Flush mounting type, and Cable, L=2 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.

Datasheet

Brand	Baumer
Product Type	Proximity Sensor
Product	IFRM 04N15A3/L

Baumer IFRM 04N15A3/L Proximity Sensor – Technical Specifications

Specification	Value
Mounting type	Flush
Nominal sensing distance Sn	1 mm
Hysteresis	2 … 20 % of Sr
Output indicator	LED red
Switching frequency	5 kHz
Voltage supply range +Vs	6 … 30 VDC
Current consumption max. (no load)	12 mA
Output circuit	NPN make function (NO)
Voltage drop Vd	<2 VDC
Output current	200 mA
Design	Cylindrical smooth
Housing material	Stainless steel
Dimension	4 mm
Housing length	20 mm
Connection types	Cable, L=2 m
Operating temperature	-25 … +75 °C
Protection class	IP 67

Mail Us for your needs in Baumer 1mm Flush Inductive Switches IFRM 04N15A3/L part no: 10144442 with budget-friendly prices. The Main Technical Parameters of IFRM 04N15A3/L, 10144442 inludce Flush Mounting type. This sensor features a nominal sensing distance of 1 mm and a switching frequency of 5 kHz, making it ideal for high-speed applications. The output indicator is an LED red light, and the sensor operates within a voltage supply range of 6 … 30 VDC, with a maximum current consumption of 12 mA. The output circuit is an NPN make function (NO). The sensor's Cylindrical smooth design is crafted from high-quality Stainless steel with LSR for durability. It has a compact dimension of 4 mm and is equipped with a reliable Cable, L=2 m for easy integration. Customize Your Experience with a Quote for your requirement of Baumer 1mm Flush Inductive Switches. Experience the difference with our competitive pricing and superior support over other Suppliers.
