During technical comparisons, IFRM-03P3713-QL appears alongside Sick Proximity Sensor and Baumer Proximity Sensor so engineers assess signal types, ingress protection, and ambient tolerances accurately.

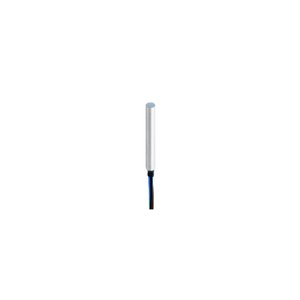

Baumer IFRM 03P3713/QL Proximity Sensor
The Baumer IFRM 03P3713/QL Proximity Sensor offers a Cylindrical smooth design, 1 mm scanning range, PNP break function (NC) output, Flush mounting type, and Wires, 0,5 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Product | IFRM 03P3713/QL |
Baumer IFRM 03P3713/QL Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 1 mm |
| Hysteresis | 2 β¦ 20 % of Sr |
| Output indicator | LED red |
| Switching frequency | 4 kHz |
| Voltage supply range +Vs | 6 β¦ 30 VDC |
| Current consumption max. (no load) | 10 mA |
| Output circuit | PNP break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 100 mA |
| Design | Cylindrical smooth |
| Housing material | Stainless steel |
| Dimension | 3 mm |
| Housing length | 12 mm |
| Connection types | Wires, 0,5 m |
| Operating temperature | -10 β¦ +70 Β°C |
| Protection class | IP 67 |
Get A Quote for Baumer LED Red Inductive Switches IFRM 03P3713/QL part no: 11166561 at unbeatable prices. Detailed Specifications of IFRM 03P3713/QL, 11166561 feature Flush Mounting type. This sensor features a nominal sensing distance of 1 mm and a switching frequency of 4 kHz, making it ideal for high-speed applications. The output indicator is an LED red light, and the sensor operates within a voltage supply range of 6 β¦ 30 VDC, with a maximum current consumption of 10 mA. The output circuit is an PNP break function (NC). The sensor's Cylindrical smooth design is crafted from high-quality Stainless steel with LSR for durability. It has a compact dimension of 3 mm and is equipped with a reliable Wires, 0,5 m for easy integration. Match Your Needs with a Quote for your requirement of Baumer LED Red Inductive Switches. Our pricing and support are unrivaled, especially when compared to other Distributors.
