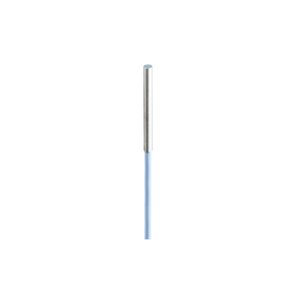

Baumer IFRM 03N1501/KS35L Proximity Sensor
The Baumer IFRM 03N1501/KS35L Proximity Sensor offers a Cylindrical smooth design, 0.8 mm scanning range, NPN make function (NO) output, Flush mounting type, and Flylead connector M8 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Product | IFRM 03N1501/KS35L |
Baumer IFRM 03N1501/KS35L Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 0.8 mm |
| Hysteresis | 2 β¦ 20 % of Sr |
| Output indicator | LED red |
| Switching frequency | 3 kHz |
| Voltage supply range +Vs | 6 β¦ 30 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | NPN make function (NO) |
| Voltage drop Vd | <2 VDC |
| Output current | 100 mA |
| Design | Cylindrical smooth |
| Housing material | Stainless steel |
| Dimension | 3 mm |
| Housing length | 22 mm |
| Connection types | Flylead connector M8 |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
Mail Us for Baumer Flush Inductive Proximity Switch IFRM 03N1501/KS35L part no: 10139543 at the lowest pricing. Technical Specs Summary of IFRM 03N1501/KS35L, 10139543 are Flush Mounting type. This sensor features a nominal sensing distance of 0.8 mm and a switching frequency of 3 kHz, making it ideal for high-speed applications. The output indicator is an LED red light, and the sensor operates within a voltage supply range of 6 β¦ 30 VDC, with a maximum current consumption of 12 mA. The output circuit is an NPN make function (NO). The sensor's Cylindrical smooth design is crafted from high-quality Stainless steel with LSR for durability. It has a compact dimension of 3 mm and is equipped with a reliable Flylead connector M8 for easy integration. Navigate Your Needs with a Quote for your requirement of Baumer Flush Inductive Proximity Switch. We excel in offering more cost-effective and supportive solutions than other Competitors.
