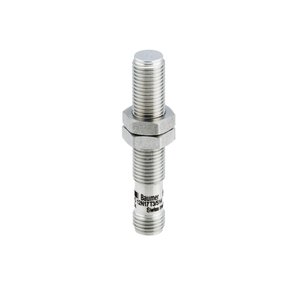

Baumer IFRD 12N17T3/S14 Proximity Sensor
The Baumer IFRD 12N17T3/S14 Proximity Sensor offers a Cylindrical threaded design, 4 mm sensing distance, NPN make function (NO) output, Quasi-flush mounting type, and Connector M12 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Product | IFRD 12N17T3/S14 |
Baumer IFRD 12N17T3/S14 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Quasi-flush |
| Nominal sensing distance Sn | 4 mm |
| Hysteresis | 2 … 20 % of Sr |
| Switching frequency | 100 Hz |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 14 mA |
| Output circuit | NPN make function (NO) |
| Voltage drop Vd | <2 VDC |
| Output current | 100 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | Stainless steel 1.4404 (V4A) |
| Housing material | Stainless steel 1.4404 (V4A) |
| Operating pressure static | < 20 bar |
| Dimension | 12 mm |
| Housing length | 50 mm |
| Connection types | Connector M12 |
| Operating temperature | -25 … +100 °C |
| Protection class | IP 69K |
Built for high-performance automation tasks, the Baumer IFRD 12N17T3/S14 inductive switch combines durable materials with smart engineering. With a quasi-flush mounting type and a 4 mm sensing distance, it’s tailored for close-range metal detection without interference. The device operates within a 10–30 VDC supply voltage range and features an NPN normally open output, supporting up to 100 mA output current. A switching frequency of 100 Hz ensures fast response in dynamic environments, while the stainless steel 1.4404 (V4A) housing enhances corrosion resistance and reliability under extreme conditions, including up to 20 bar static pressure. The sensor is further equipped with a M12 connector for secure and easy integration. With IP69K protection and an operating temperature range of -25 to +100 °C, it’s built to withstand aggressive washdowns and temperature variations.
The IFRD 12N17T3/S14 is ideally suited for use in food processing lines, packaging machines, bottling units, and steel handling systems, where hygiene, robustness, and consistent performance are critical. Thanks to its compact 12 mm diameter and 50 mm housing length, this sensor fits easily into tight installations without sacrificing functionality. Engineers often choose this model in environments exposed to oil, steam, or high-pressure cleaning—scenarios where typical plastic or low-grade sensors fail. Its high switching frequency and stable detection capability also make it a great choice for rotating part detection, counting, and conveyor positioning. At IndMALL, we provide verified specifications and trusted sourcing for the Baumer IFRD 12N17T3/S14.
