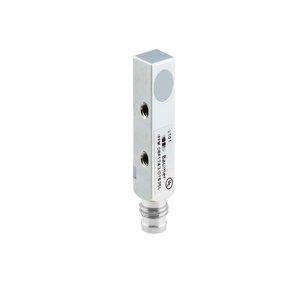

Baumer IFFM 08N37A3/O1S35L Proximity Sensor
The Baumer IFFM 08N37A3/O1S35L Proximity Sensor offers a Rectangular design, 2 mm sensing distance, NPN break function (NC) output, Flush mounting type, and Connector M8 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Mounting Type | Flush |
| Nominal sensing distance Sn | 2 mm |
| Output Circuit | NPN break function (NC) |
| Connection Types | Connector M8 |
Baumer IFFM 08N37A3/O1S35L Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 2 mm |
| Hysteresis | 3 β¦ 20 % of Sr |
| Output indicator | LED red |
| Switching frequency | 5 kHz |
| Voltage supply range +Vs | 6 β¦ 36 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | NPN break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 8 mm |
| Housing length | 35.5 mm |
| Connection types | Connector M8 |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
Mail Us for your needs in Baumer 35.5 mm Housing Length Miniature Sensors IFFM 08N37A3/O1S35L part no: 10160244 with budget-friendly prices. The Main Technical Parameters of IFFM 08N37A3/O1S35L, 10160244 include Flush Mount Sensor, designed for precision applications with a 2 mm nominal sensing distance. The sensor features a LED red output indicator and operates at a fast switching frequency of 5 kHz ensuring rapid response times. The voltage supply range is from 6 β¦ 36 VDC and the output circuit uses an NPN break function (NC), capable of handling an output current of up to 200 mA. Its Rectangular design and durable Brass nickel plated (Polyamide) Housing material ensure reliability in industrial environments. The sensor has a compact housing length of 35.5 mm and overall dimensions of 8 mm. Equipped with an AB550 connection, it operates within a temperature range of -25 β¦ +75 Β°C.Customize Your Experience with a Quote for your requirement of Baumer 35.5 mm Housing Length Miniature Sensors. Experience the difference with our competitive pricing and superior support over other Suppliers.
