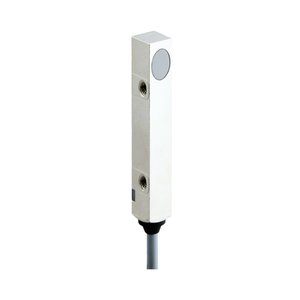

Baumer IFFM 08N3701/O1L Proximity Sensor
The Baumer IFFM 08N3701/O1L Proximity Sensor offers a Rectangular design, 2 mm sensing distance, NPN break function (NC) output, Flush mounting type, and Cable, L=2 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Mounting Type | Flush |
| Nominal sensing distance Sn | 2 mm |
| Output Circuit | NPN break function (NC) |
| Connection Types | Cable, L=2 m |
Baumer IFFM 08N3701/O1L Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 2 mm |
| Hysteresis | 3 β¦ 20 % of Sr |
| Output indicator | LED red |
| Switching frequency | 5 kHz |
| Voltage supply range +Vs | 6 β¦ 36 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | NPN break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Material (sensing face) | PBT |
| Housing material | Die-cast zinc nickel plated |
| Dimension | 8 mm |
| Housing length | 38.5 mm |
| Connection types | Cable, L=2 m |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
IndMALL Offers Baumer 200 mA Output Current Miniature Sensors IFFM 08N3701/O1L part no: 10229711 at economical Choices. Product Tech Specs of IFFM 08N3701/O1L, 10229711 include Flush Mount Sensor, designed for precision applications with a 2 mm nominal sensing distance. The sensor features a LED red output indicator and operates at a fast switching frequency of 5 kHz ensuring rapid response times. The voltage supply range is from 6 β¦ 36 VDC and the output circuit uses an NPN break function (NC), capable of handling an output current of up to 200 mA. Its Rectangular design and durable Die-cast zinc nickel plated (Polyamide) Housing material ensure reliability in industrial environments. The sensor has a compact housing length of 38.5 mm and overall dimensions of 8 mm. Equipped with an AB550 connection, it operates within a temperature range of -25 β¦ +75 Β°C. Now's the Time to Secure a Quote for your requirement of Baumer 200 mA Output Current Miniature Sensors. Trust in our superior pricing and more dedicated support over other Distributors.
