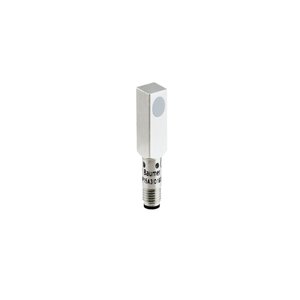

Baumer IFFM 06N35A3/O1S05L Proximity Sensor
The Baumer IFFM 06N35A3/O1S05L Proximity Sensor offers a Rectangular design, 1 mm sensing distance, NPN break function (NC) output, Flush mounting type, and Connector M5 connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IFFM 06N35A3/O1S05L |
Baumer IFFM 06N35A3/O1S05L Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 1 mm |
| Hysteresis | 2 … 20 % of Sr |
| Output indicator | 2 port LED red |
| Switching frequency | 5 kHz |
| Voltage supply range +Vs | 6 … 30 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | NPN break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Material (sensing face) | LCP |
| Housing material | Brass nickel plated |
| Dimension | 6 mm |
| Housing length | 24 mm |
| Connection types | Connector M5 |
| Operating temperature | -25 … +75 °C |
| Protection class | IP 67 |
Talk to Our Engineer for Baumer LCP Rectangular Miniature Sensors IFFM 06N35A3/O1S05L part no: 10146217 with exclusive offers. Core System Specifications of IFFM 06N35A3/O1S05L, 10146217 are Flush Mount Sensor, designed for precision applications with a 1 mm nominal sensing distance. The sensor features a 2 port LED red output indicator and operates at a fast switching frequency of 5 kHz ensuring rapid response times. The voltage supply range is from 6 … 30 VDC and the output circuit uses an NPN break function (NC), capable of handling an output current of up to 200 mA. Its Rectangular design and durable Brass nickel plated (Polyamide) Housing material ensure reliability in industrial environments. The sensor has a compact housing length of 24 mm and overall dimensions of 6 mm. Equipped with an AB550 connection, it operates within a temperature range of -25 … +75 °C.Don't Miss Out on a Quote for your requirement of Baumer LCP Rectangular Miniature Sensors. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
